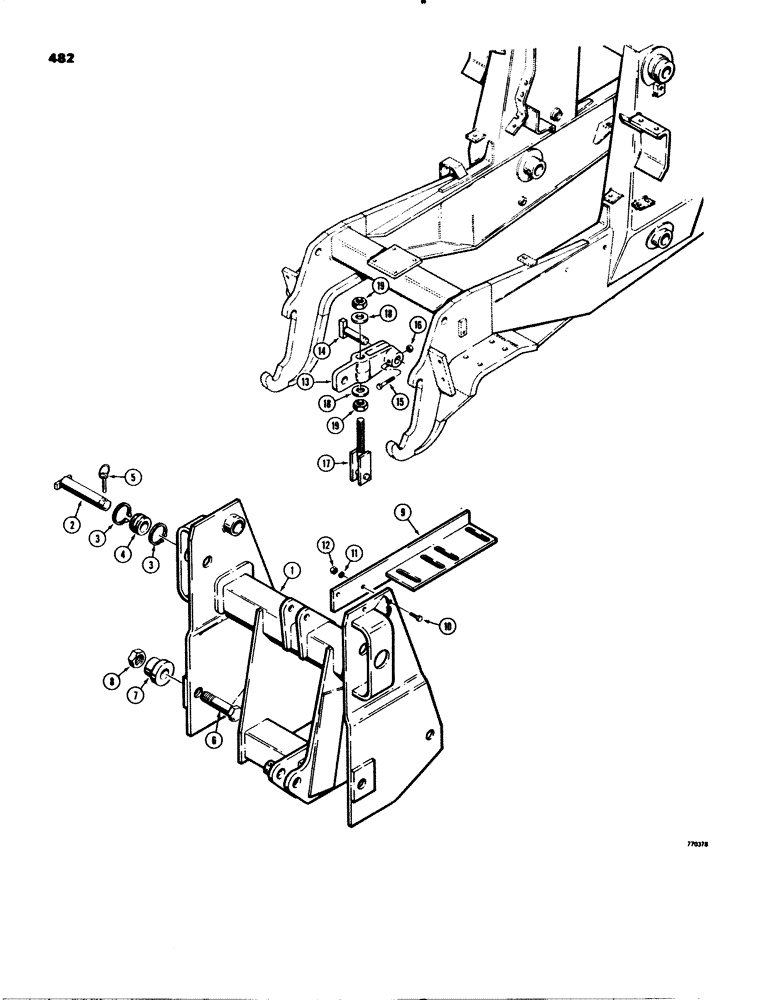

Запчасти Case 580C (482) - 3-POINT HITCH FRAME AND ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

1

D67337

FUNNEL

FRAME - mounting, 3-point hitch

1шт.

2

D54957

PIN

- mounting, frame to upper support

2шт.

3

F40807

SNAP RING,#225, Ext

Ring, Snap, , spacer #225, Ext

4шт.

4

D51895

SPACER

- mounting pin

2шт.

5

D33805

PIN

- retaining

2шт.

6

13-2068

BOLT,Hex, 1-1/4" - 7 x 4-1/4", Gr 5

2шт.

7

D51573

PIN - frame mounting, lower

2шт.

8

25-1020

NUT,1 1/4"-7, G5

2шт.

9

D69194

BAR

BRACKET - valve mounting

2шт.

9

D69194

BAR

BRACKET - valve mounting

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

13

D74007

LINK

- upper, backhoe attaching

2шт.

14

D71870

PIN

-, Serial Range: link-tractor

2шт.

15

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

If used Hex, 1/2"-13 x 3 3/4", G5

2шт.

15

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

If used Hex, 1/2"-13 x 3 1/2", G5

2шт.

16

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC

2шт.

17

D61065

ROD

- tension, used tractor, order (1) D83226 rod and (2) 131-454 nuts, Serial Range: -8974781

2шт.

17

D83226

ROD

- tension, used on tractor, Start Serial: 8974781

2шт.

18

D64968

WASHER

- special, hardened

4шт.

19

25-1020

NUT,1 1/4"-7, G5

Used tractor 1 1/4"-7, G5, Serial Range: -8974781

4шт.

20

131-454

LOCK NUT,1 1/4"-7

NUT - hex, self lock, 1-1/4" - 7 NC, used on tractor, Start Serial: 8974781

4шт.
