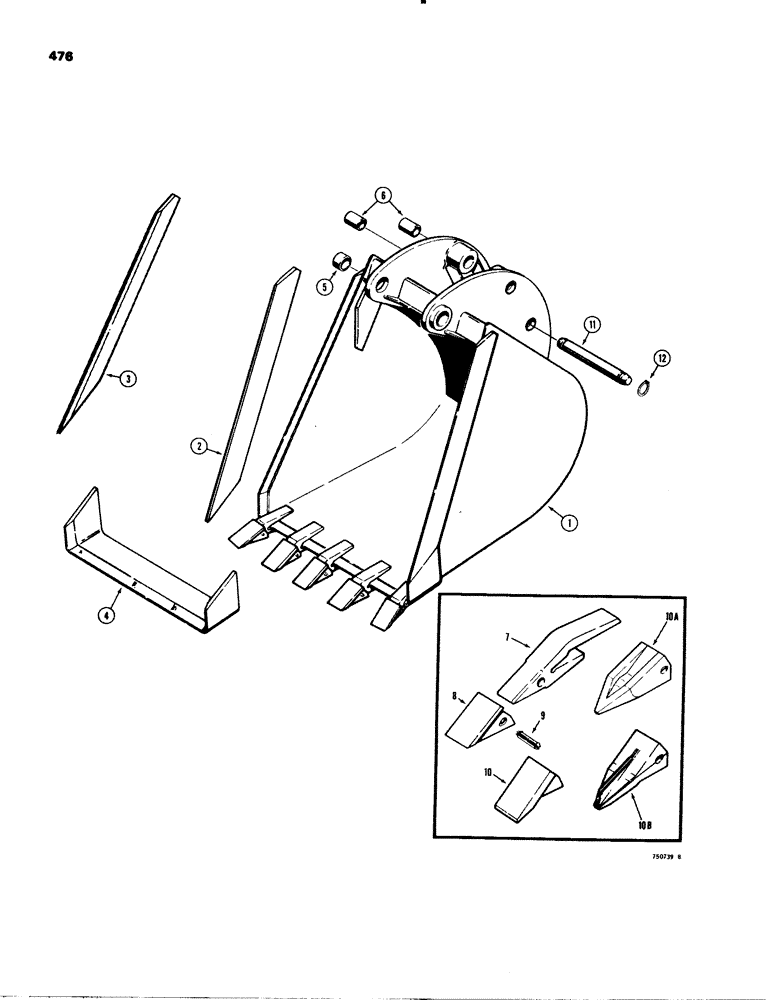

Запчасти Case 580C (476) - BACKHOE BUCKETS, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D57546
BUCKET
18" (457 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
1шт.
2
D57550
EDGE, CUTTING
BLADE - RH side
1шт.
3
D57551
EDGE, CUTTING
BLADE - LH side
1шт.
4
D57594
EDGE, CUTTING
BLADE - center
1шт.
5
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
bucket, at dipper arm
2шт.
6
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
bucket, at bucket link
4шт.
1
D57544
BUCKET
24" (610 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
1шт.
2
D57550
EDGE, CUTTING
BLADE - RH side
1шт.
3
D57551
EDGE, CUTTING
BLADE - LH side
1шт.
4
D57591
EDGE, CUTTING
BLADE - center
1шт.
5
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
bucket, at dipper arm
2шт.
6
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
bucket, at bucket link
4шт.
1
D57543
BUCKET
30" (762 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
1шт.
2
D57550
EDGE, CUTTING
BLADE - RH side
1шт.
3
D57551
EDGE, CUTTING
BLADE - LH side
1шт.
4
D57559
EDGE, CUTTING
BLAde center
1шт.
5
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
bucket, at dipper arm
2шт.
6
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
bucket, at bucket link
4шт.
1
D57545
BUCKET
36" (914 mm), machinery item - see Figure 2 for ordering, Includes: Ref. 2 - 6
1шт.
2
D57550
EDGE, CUTTING
BLADE - RH side
1шт.
3
D57551
EDGE, CUTTING
BLADE - LH side
1шт.
4
D57595
EDGE, CUTTING
BLADE - center
1шт.
5
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
bucket, at dipper arm
2шт.
6
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
bucket, at bucket link
4шт.
D48035
TOOTH
ASSEMBLY - heavy duty bucket only, Includes: Ref 7 - 9
1шт.
7
D48212
SHANK
tooth
1шт.
8
D39093
TOOTH
POINT
1шт.
9
D39094
BUCKET TOOTH KEY
FLEX PIN - point
1шт.
10
D44193
TOOTH
POINT - tooth, heavy duty, flat end, service option
1шт.
10a
D80119
TOOTH
POINT - tooth, heavy duty, pointed end, service option
1шт.
10b
D79100
TOOTH
POINT - tooth, heavy duty, star point, service option
1шт.
D41679
KIT
- pin, bucket, Includes: Ref. 11, 12 and D41679
1шт.
11
D30899
PIVOT PIN,38.1mm OD x 338.14mm L
PIN - bucket to bucket link, D41679
1шт.
12
D25279
SNAP RING,M35, Int
RING - snap, D41679 pin kit
2шт.
Выбрано товаров: 34
