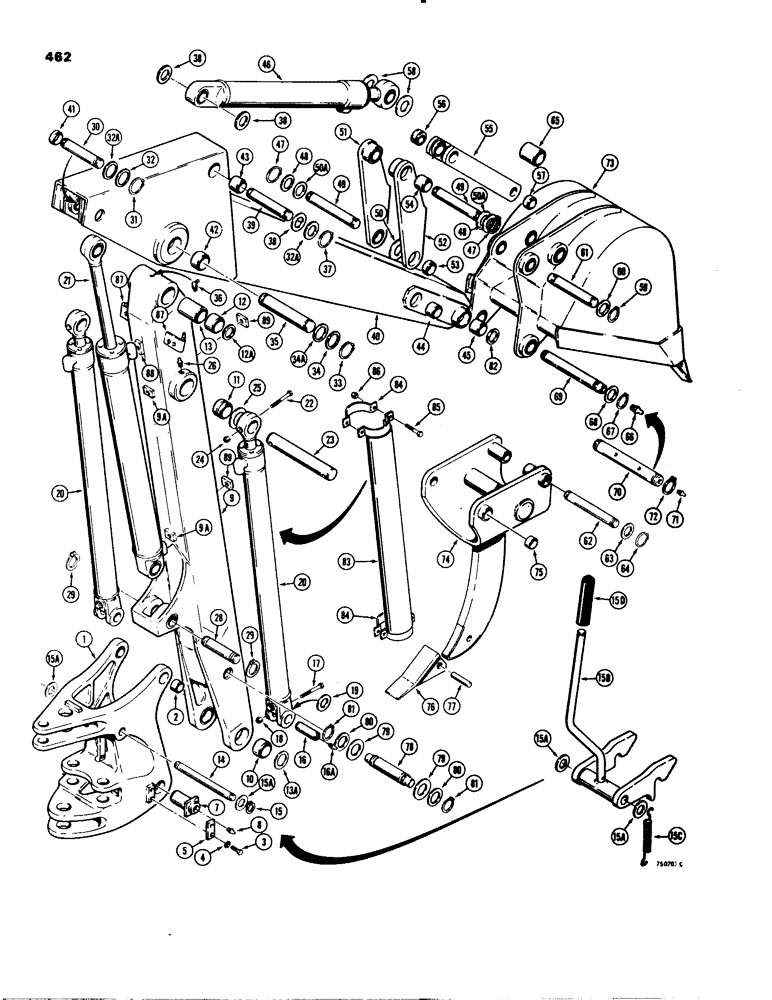

Запчасти Case 580C (462) - TOWER, BOOM, DIPPER ARM AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

D67791

BRACKET

TOWER - swing, see Figure 458 for swing cylinder and frame attaching parts and hose guards, Includes: Ref. 2

1шт.

2

D49429

BUSHING

- at boom cylinder, closed end

2шт.

3

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

D50149

BLOCK

- pin locking

2шт.

D50149 block - The block welded to swing tower which this part mates to is part nbr D50147.

1шт.

6

RESERVED

1шт.

7

D50700

PIN

- boom to swing tower

2шт.

D50700 pin - For pin which goes all the way through order D91240 (held in by snap ring at each end) - refer to 580D or 580E parts book.

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

9

D69988

BOOM

- backhoe, Includes: Ref. 9A - 12

1шт.

9a

D50004

BLOCK

- tapped, Serial Range: welded-boom

2шт.

10

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

- boom pivot

2шт.

11

D95362

BUSHING

- boom cylinder anchor

2шт.

12

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper pivot

2шт.

12a

72990

WASHER

- flat, .06" (1.52 mm) thick

1шт.

13

D37416

BUSHING

SPACER - bushing

1шт.

13a

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, between swing tower and boom .035" Thk

1шт.

14

D55996

SHAFT

- pivot, boom lock

1шт.

15

D56051

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, pin

2шт.

15a

195-2140

WASHER,1 7/16" x 2" x .065"

- flat

1шт.

15b

D75674

LEVER

AND LATCH - transport lock

1шт.

15c

D63988

SPRING

- transport latch

1шт.

15d

D75300

KNOB

GRIP - handle, plastic, if used

1шт.

16

D49866

PIN,38.1mm OD x 96.52mm L

- boom, Serial Range: cylinder-tower

2шт.

16a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8" - 16 NC x 3-1/2"

2шт.

18

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC

2шт.

19

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, if used

1шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, boom, see Figure 400 or 402

2шт.

21

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, see Figure 404 or 406

1шт.

22

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

23

D49865

PIN,50.8mm OD x 304.8mm L

- boom, Serial Range: cylinder-boom

1шт.

24

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2" - 13 NC

2шт.

25

195-2155

WASHER,2 1/16" x 3" x .109"

- flat

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used, Not shown 90º, 1/8" NPT x .84" lg

2шт.

26

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" NPT, if used, not shown

2шт.

27

RESERVED

1шт.

28

D72359

PIN,44.45mm OD x 142.24mm L

- dipper, Serial Range: cylinder-boom

1шт.

29

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

30

D52522

PIN,44.45mm OD x 211.84mm L

- dipper, Serial Range: cylinder-dipper

1шт.

31

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, .105" (2.67 mm) thick

1шт.

32a

86977693

NUT,Serrated, #8 - 32, Gr 5

- flat, .0625" (1.59 mm) thick

1шт.

33

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

34

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, .105" (2.67 mm) thick

1шт.

34a

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Pin (0.89 mm) .035" Thk

1шт.

35

D45523

PIN,50.8mm OD x 276.35mm L

-, Serial Range: boom-dipper

1шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

38

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

1шт.

39

D52522

PIN,44.45mm OD x 211.84mm L

- dipper to bucket cylinder

1шт.

40

D77895

BOOM

DIPPER ARM - backhoe, Includes: Refs. 41 - 45

1шт.

41

D52434

BUSHING

- dipper, at dipper cylinder

2шт.

42

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper, at boom

2шт.

43

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper, at bucket cylinder

2шт.

44

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper, at bucket links

2шт.

45

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- dipper, at bucket

2шт.

46

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figure 408 or 410 for proper cylinder

1шт.

47

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

1шт.

48

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, .105" (2.67 mm) thick

4шт.

49

D53818

PIN,44.45mm OD x 278.89mm L

- bucket linkage to dipper arm

2шт.

50

D77725

WASHER

- special, .375" (9.53 mm) thick

2шт.

50a

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

- flat, .0625" (1.59 mm) thick

1шт.

51

D61088

LINK

- bucket cylinder to dipper arm, LH

1шт.

52

D61087

LINK

- bucket cylinder to dipper arm, RH, Includes: Ref. 53 and 54

1шт.

53

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper arm

1шт.

54

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket

1шт.

55

D61244

LINK

- bucket cylinder to bucket, Includes: Ref. 56 and 57

2шт.

56

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

57

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket

1шт.

58

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

1шт.

59

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

60

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

1шт.

61

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - link to bucket, used on shovel and ditching buckets only

1шт.

61

D37614

PIN,38mm Od x 246mm L

- link to bucket, used on all buckets except shovel and ditching buckets

1шт.

62

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

63

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- plain

2шт.

64

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

65

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - link

1шт.

66

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

67

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

68

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

1шт.

69

D64799

PIN,44.45mm OD x 370.84mm L

- dipper arm to bucket, all buckets except 12" (305 mm) buckets

1шт.

70

D55584

PIN,44.45mm OD x 327.15mm L

- dipper arm to bucket, lubricated, 12" (305 mm) buckets only

1шт.

71

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

72

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

73

REF

INSTRUCTION

BUCKET - backhoe, see Figures 472 - 478 for options

1шт.

74

D54136

SUPPORT ASSY.

BODY - frost tooth, Includes: Ref. 75

1шт.

75

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost tooth pivot

2шт.

D54136

SUPPORT ASSY.

POINT ASSEMBLY - front tooth, Includes: Ref. 76 and 77

1шт.

76

D83306

POINT

- tooth, replaces D43416 point

1шт.

77

D43417

PIN

- point

1шт.

78

D55082

LOCK PIN,38.1mm OD x 208.53mm L

PIN - lock, boom transport

1шт.

79

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, .105" (2.67 mm) thick

1шт.

80

D31312

WASHER

- flat, .062" (1.57 mm) thick

1шт.

81

D25279

SNAP RING,M35, Int

RING - retaining, pin

2шт.

82

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4"

2шт.

83

D62468

GUARD

- boom cylinder, if used

2шт.

84

D62467

BRACKET

- guard mounting, if used

4шт.

85

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex, 5/16" - 18 NC x 3"

8шт.

86

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

8шт.

87

D45559

BRACKET

- tube clamp, Serial Range: welded-boom

2шт.

Used with Extendable Dipper

1шт.

88

D52569

BLOCK

- tapped, Serial Range: welded-boom

1шт.

Used with Extendable Dipper

1шт.

89

D52843

BLOCK

- tapped, Serial Range: welded-boom

5шт.

Used with Extendable Dipper

1шт.
