Запчасти Case 580C (458) - MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

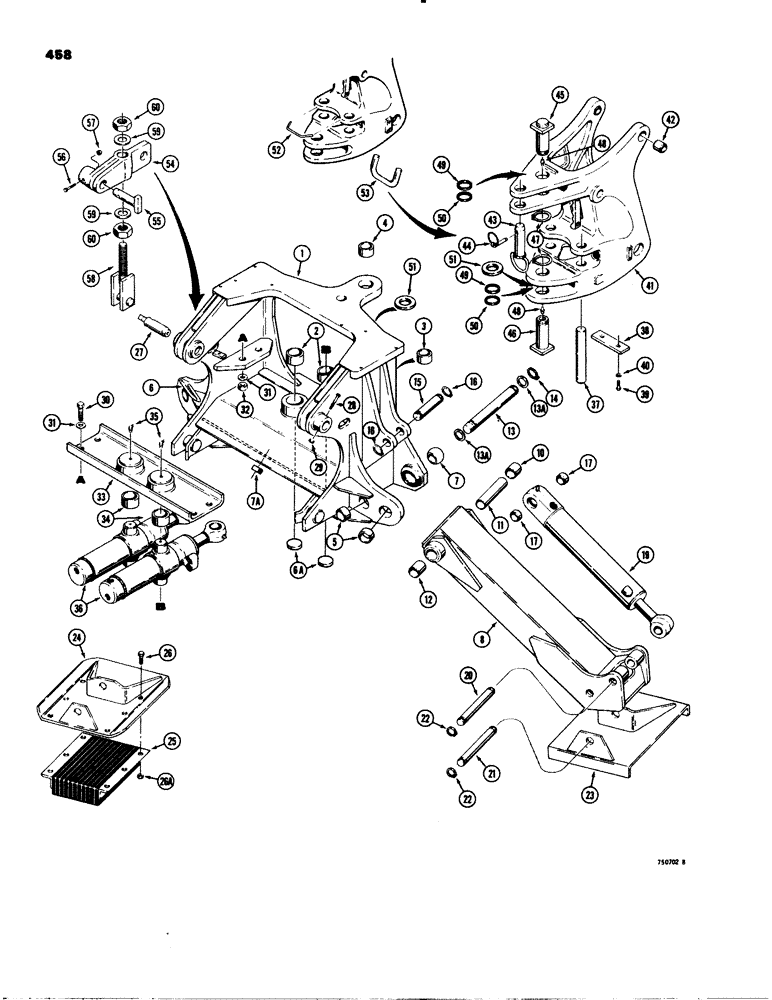

Схема запчастей Case 580C - (458) - MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS
7a
27
16
26a
25
52
15
13a
46
49
45
51
12
13
54
56
40
4
33
48
31
44
36
20
17
23
31
41
24
60
8
43
7
57
49
22
1
16
5
34
26
21
50
42
39
29
13a
55
58
47
17
37
60
38
11
28
3
32
59
6
22
30
50
48
6a
14
53
51
10
59
35
2
19

Артикул

Название

Примечание

Количество

1

D67790

FRAME - backhoe mounting, used backhoe, also order Refs. 7 and 7A, Includes: Ref. 2 - 6A, Serial Range: -5411088

1шт.

1

D84364

FRAME - backhoe mounting, used on backhoe, also order Refs. 7 and 7A, Includes: Ref. 2 - 6A, Start Serial: 5411088

1шт.

2

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame, at swing tower, lower

1шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- frame, at swing tower, lower

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- stabilizer anchor

4шт.

6

D61298

GUIDE

- hose

1шт.

6a

41-1044

PLUG,Cup, 2 3/4"

- cup, 2-3/4"

2шт.

7

D60803

BUSHING,44.42mm ID x 63.75mm OD

BEARING - inner, stabilizer anchor

2шт.

D60803 inner bearing - Race which this item fits into is part nbr D60846 and welded plates which contain this assembly are part nbrs D60849 (RH) and D60850 (LH).

1шт.

7a

41-1032

PLUG,Cup, 2"

- core hole, 2"

1шт.

8

D50294

STABILIZER

LEG ASSEMBLY - stabilizer, RH, Includes: Ref. 10 - 12

1шт.

9

D50295

STABILIZER

LEG ASSEMBLY - stabilizer, LH, not shown, Includes: Ref. 10 - 12

1шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- leg to frame, 1-1/4" (32 mm) long

1шт.

Ref. 10, 11 and 12 - Plate (w/ bushing) showing in illustration at top of stabilizer leg (where it matches up to mounting frame) is part nbr D54734 (large boss). The plate on other side of stabilizer leg is D54733 (small boss).

1шт.

11

D54013

SPACER,50.7mm ID x 53.98mm OD x 140.72mm L

SPACER - bushing, if used

1шт.

Ref. 10, 11 and 12 - Plate (w/ bushing) showing in illustration at top of stabilizer leg (where it matches up to mounting frame) is part nbr D54734 (large boss). The plate on other side of stabilizer leg is D54733 (small boss).

1шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- leg to frame, 2" (51 mm) long

1шт.

Ref. 10, 11 and 12 - Plate (w/ bushing) showing in illustration at top of stabilizer leg (where it matches up to mounting frame) is part nbr D54734 (large boss). The plate on other side of stabilizer leg is D54733 (small boss).

1шт.

13

D67308

PIN,44.4mm OD x 344.17mm L

- stablizer, Serial Range: leg-frame

2шт.

13a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4"

4шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

15

D29483

PIN,38.1mm OD x 146.05mm L

- stabilizer, Serial Range: cylinder-frame

2шт.

16

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

17

D50337

BUSHING,38.91mm ID x 44.45mm OD x 14.22mm L

SPACER -, Serial Range: cylinder-frame

2шт.

18

REF

INSTRUCTION

CYLINDER - hydraulic, LH stabilizer, not shown, see Figure 390 or 392 for correct cylinder

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, RH stabilizer, see Figure 390 or 392 for correct cylinder

1шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

- stabilizer, Serial Range: cylinder-leg

2шт.

21

D50696

PIN,38.1mm OD x 225.55mm L

- stabilizer, Serial Range: plate-leg

2шт.

22

D25279

SNAP RING,M35, Int

RING - pin retaining

8шт.

23

D64621

FOOT REST

PLATE - stabilizer, cleated, if used

2шт.

24

D61376

STABILIZER

PLATE - stabilizer, street or cemetery pad, if used, uses D61638 pad

2шт.

25

D61368

PAD

Rubber, D61376 stabilizer plate, if used

2шт.

26

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8-1шт.

26a

129-108

NUT,3/4"-10, G5

8-1шт.

27

D56335

PIN

- tractor to backhoe mounting frame

2шт.

28

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

29

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC

2шт.

30

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

31

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, hardened

8шт.

32

25-1016

NUT,1"-8, G5

4шт.

33

D60169

CHANNEL

PLATE - retainer, swing cylinder, upper, Includes: Ref. 34

1шт.

34

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, upper

2шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

2шт.

36

REF

INSTRUCTION

CYLINDER - hydraulic, swing, see Figure 394-398 for correct cylinder

2шт.

37

D49863

PIN,44.45mm OD x 248.92mm L

- swing, Serial Range: cylinder-tower

2шт.

38

D49864

PLATE

- pin retaining

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

D67791

BRACKET

TOWER - swing, see Figure 462 for boom attaching parts, Includes: Ref. 42

1шт.

42

D49429

BUSHING

- at boom cylinder, closed end

2шт.

43

D49879

PIN

- swing locking

1шт.

44

D33805

PIN

- retaining

1шт.

45

D74004

PIN

- tower to frame, upper

1шт.

46

D74004

PIN

- tower to frame, lower

1шт.

47

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

49

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, spacer, .015" (0.38 mm) thick

1шт.

50

72990

WASHER

- flat, spacer, .0625" (1.59 mm) thick

1шт.

51

D50132

SPACER,57.15mm ID x 114.3mm OD x 7.94mm L

WASHER - spacer, welded to swing tower and mounting frame

2шт.

52

D54702

GUIDE

GUARD - hose retaining, if used

1шт.

53

D56194

GUARD

- hose retaining, if used

1шт.

54

D74007

LINK

- upper, backhoe attaching

2шт.

55

D71870

PIN

-, Serial Range: link-tractor

2шт.

56

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

If used Hex, 1/2"-13 x 3 3/4", G5

2шт.

56

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

If used Hex, 1/2"-13 x 3 1/2", G5

2шт.

57

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC

2шт.

58

D61065

ROD

- tension, used tractor, and order (1) D83226 rod and (2) 131-454 nuts, Serial Range: -8974781

2шт.

58

D83226

ROD

- tension, used on tractor, Start Serial: 8974781

2шт.

59

D64968

WASHER

- special, hardened

4шт.

60

25-1020

NUT,1 1/4"-7, G5

Used tractor 1 1/4"-7, G5, Serial Range: -8974781

4шт.

60

131-454

LOCK NUT,1 1/4"-7

NUT - hex, self lock, 1-1/4" - 7 NC, used on tractor, Start Serial: 8974781

4шт.

Выбрано товаров: 72
