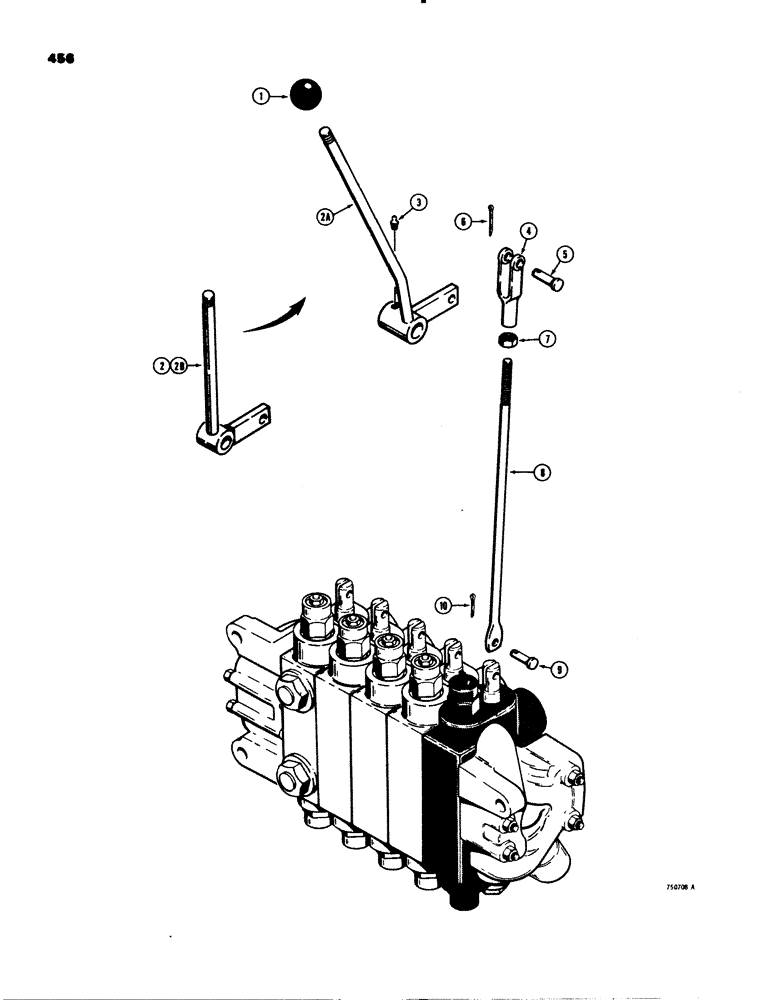

Запчасти Case 580C (456) - EXTENDABLE DIPPER CONTROL (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- lever

1шт.

2

D67768

HANDLE

- extendable dipper, individual lever controls, models with extendable dipper lever on right hand side

1шт.

2

D84291

LEVER

HANDLE - extendable dipper, individual lever controls, models with stabilizer lever on right hand side

1шт.

2a

D69934

HANDLE

- extendable dipper, twin lever controls, bent, if used

1шт.

2b

D75381

HANDLE

- extendable dipper, twin lever control, straight, if used

1шт.

3

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod, 3/8"

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

6

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

7

132-26

COTTER PIN

NUT - hex, 3/8" - 24 NF

1шт.

8

D67783

ROD

- extendable dipper

1шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, 5/16" 5/16" x .940"

1шт.

10

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.
