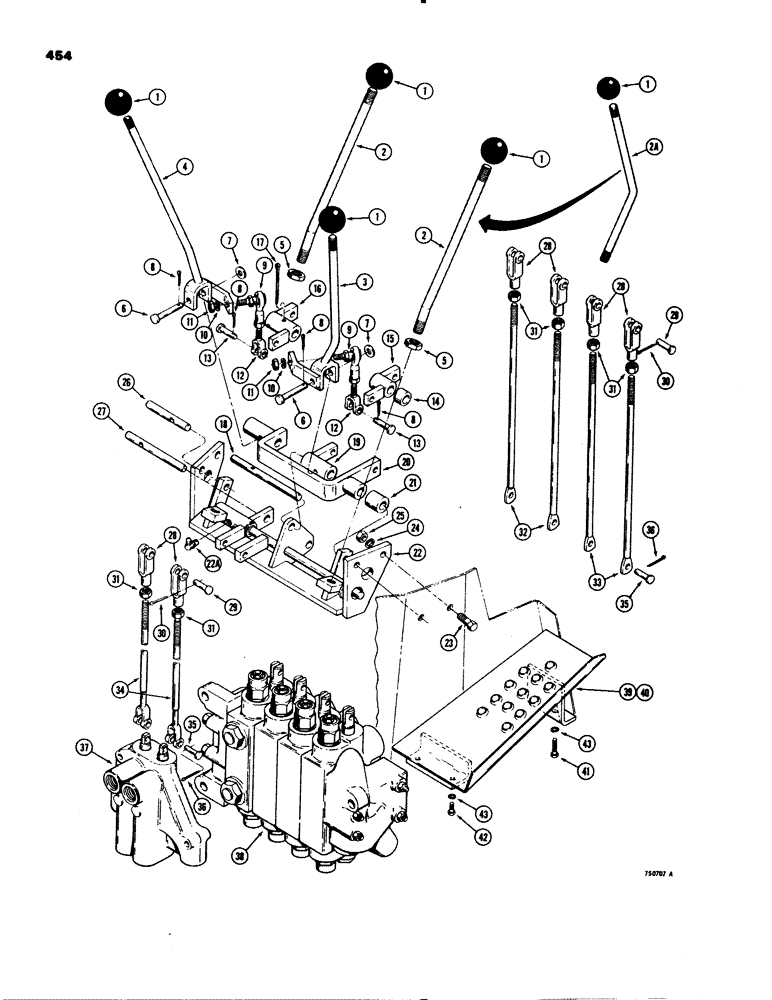

Запчасти Case 580C (454) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- levers

4шт.

2

D73009

LEVER

- stabilizer, early production, 34 degree bend, order D75434

2шт.

2a

D75434

HANDLE

LEVER - stabilizer, late production, 45 degree bend

2шт.

3

D69913

LEVER

- handle, RH

1шт.

4

D69915

LEVER

- handle, LH

1шт.

5

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF

2шт.

6

141-15

CLEVIS PIN,1/4" x 1.969"

PIN - clevis, 1/4"

2шт.

7

195-18

WASHER,1/4"

- flat, , if used 1/4"

2шт.

8

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

9

D52241

BALL JOINT

- lever

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-114

NUT,1/4"-28, G5

- hex, jam, 1/4" - 28 NF

2шт.

12

D52778

YOKE

- levers, 1/4"

2шт.

13

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, 1/4"

2шт.

14

D58552

BUSHING

SPACER - bellcrank

1шт.

15

D69925

ARM

BELLCRANK - bucket

1шт.

16

D69924

DIPPER

BELLCRANK - swing

1шт.

17

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

18

D69920

SHAFT

- upper, RH

1шт.

19

D69917

ARM

- dipper

1шт.

20

D69908

ARM

- boom

1шт.

21

D69910

SPACER

- boom arm

1шт.

22

D69933

BRACKET

- control mounting

1шт.

22a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

D69918

SHAFT

- upper, LH

1шт.

27

D69921

SHAFT

- lower

1шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8"

6шт.

29

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- hex, jam, 3/8" - 24 NC

6шт.

32

D69932

ROD

- control

2шт.

33

D67783

ROD

- control

2шт.

34

D56050

AXLE PIN

ROD - control

2шт.

35

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, 5/16" 5/16" x .940"

6шт.

36

138-25

PIN - cotter, 3/32" x 5/8"

6шт.

37

REF

INSTRUCTION

VALVE - stabilizer control, see Figure 340

1шт.

38

REF

INSTRUCTION

VALVE - backhoe control, see Figure 342

1шт.

39

D52196

TREAD

FOOT REST - RH

1шт.

40

D52197

TREAD

FOOT REST - LH

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

43

92-6

LOCK WASHER,3/8"

6шт.
