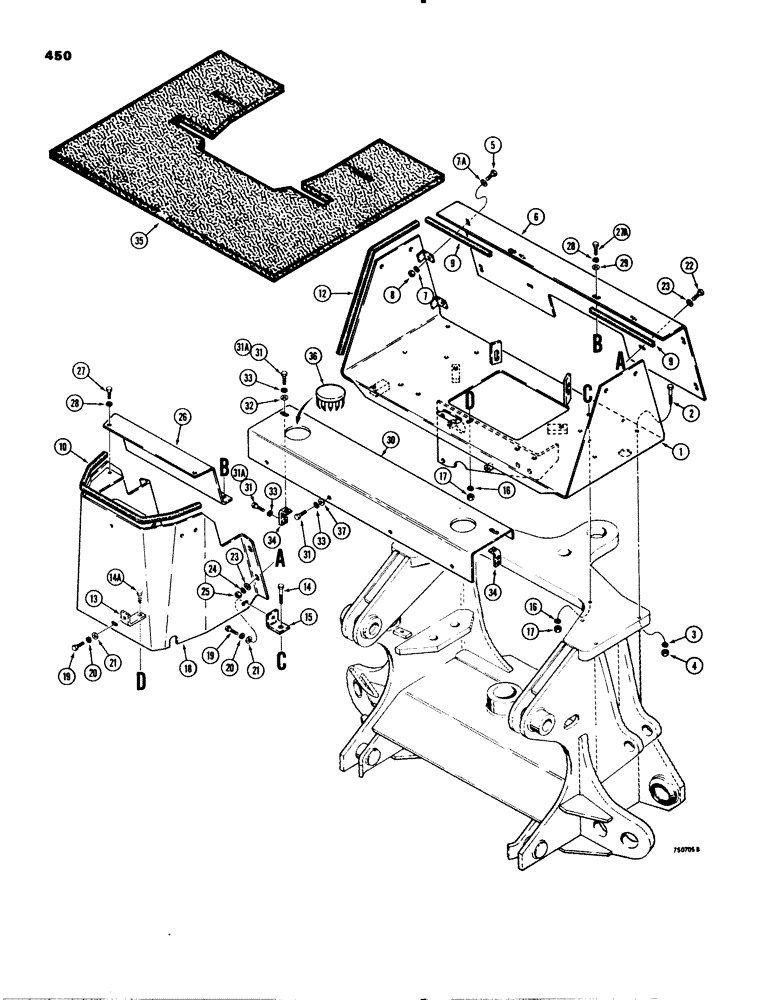

Запчасти Case 580C (450) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

D67788

PLATE AND FOOT SHIELDS - mounting frame, top

1шт.

For extra sealing strips to provide a seal between foot shield and cab, see Figure 514

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

D67779

PANEL

- front, console and foot shields

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

7a

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

9

REF

INSTRUCTION

TRIM edge, 10-1/2", 268 mm, long, cut from D52812 see below

2шт.

Part of Trim P/N D52812

1шт.

10

REF

INSTRUCTION

TRIM edge, 26", 660 mm, long, cut from D52812 see below

1шт.

Part of Trim P/N D52812

1шт.

11

RESERVED

1шт.

12

D35424

LINING

TRIM - edge, 16" (406 mm) long

2шт.

13

D52697

STRAP

BRACKET - center panel anchor

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

D50287

SUPPORT

BRACKET - mounting, center panel

2шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

18

D67778

CONSOLE

PANEL - console, center

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

195-25

WASHER,3/8"

- plain, 3/8"

3шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

D67782

PANEL

- console, top

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27a

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

30

D73847

PANEL

- closure, floor

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4-8шт.

31a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

33

92-5

LOCK WASHER,5/16"

8шт.

34

D77105

BRACKET

- panel

2шт.

35

D69728

MAT

FLOORMAT - backhoe floor, if used

1шт.

36

205-72

HOLE PLUG BUTTON,3"

PLUG - button

2шт.

37

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

D52812

RUBBER STRIP

TRIM edge, 83", 2108 mm, long, Includes: Refs. 9 and 10

1шт.
