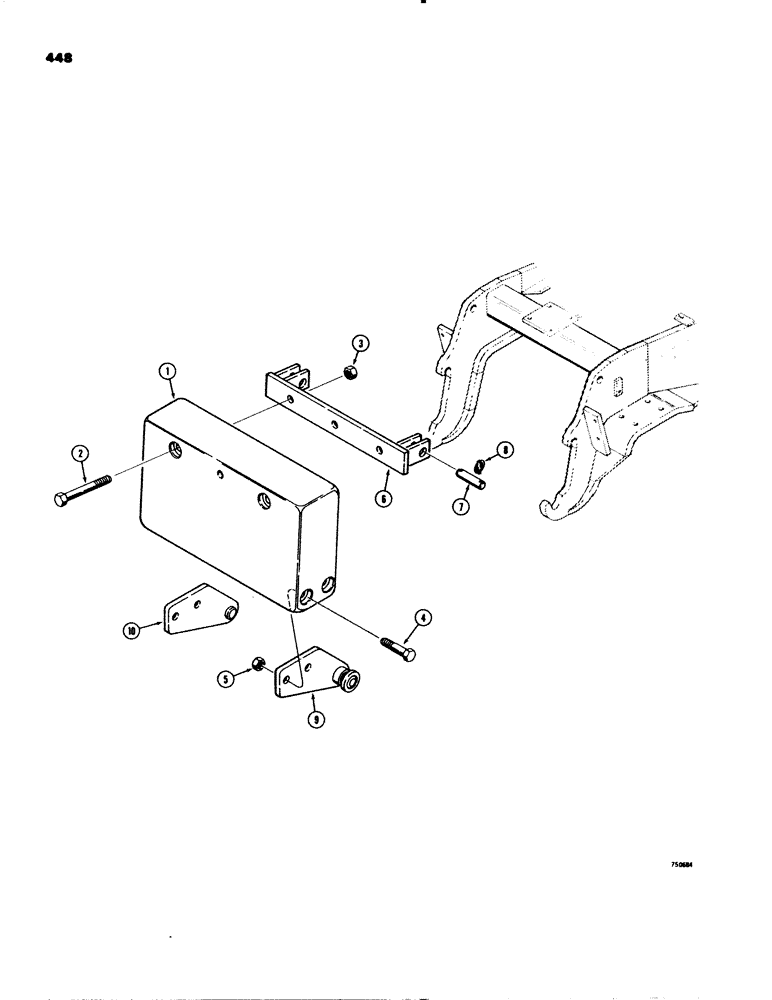

Запчасти Case 580C (448) - REAR COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs, (691 kg)

1шт.

2

15-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex, 1" - 8 NC x 10-1/2"

2шт.

3

131-659

NUT,1"-8, GB

NUT - hex, lock, 1" - 8 NC

2шт.

4

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

5

131-659

NUT,1"-8, GB

NUT - hex, lock, 1" - 8 NC

4шт.

6

D50818

BRACKET

- counterweight mounting

1шт.

7

D49812

PIN,38.1mm OD x 137.16mm L

- bracket to upper support

2шт.

8

D33805

PIN

- retaining

4шт.

9

D37134

ARM

SUPPORT - lower, RH

1шт.

10

D37135

ARM

SUPPORT - lower, LH

1шт.
