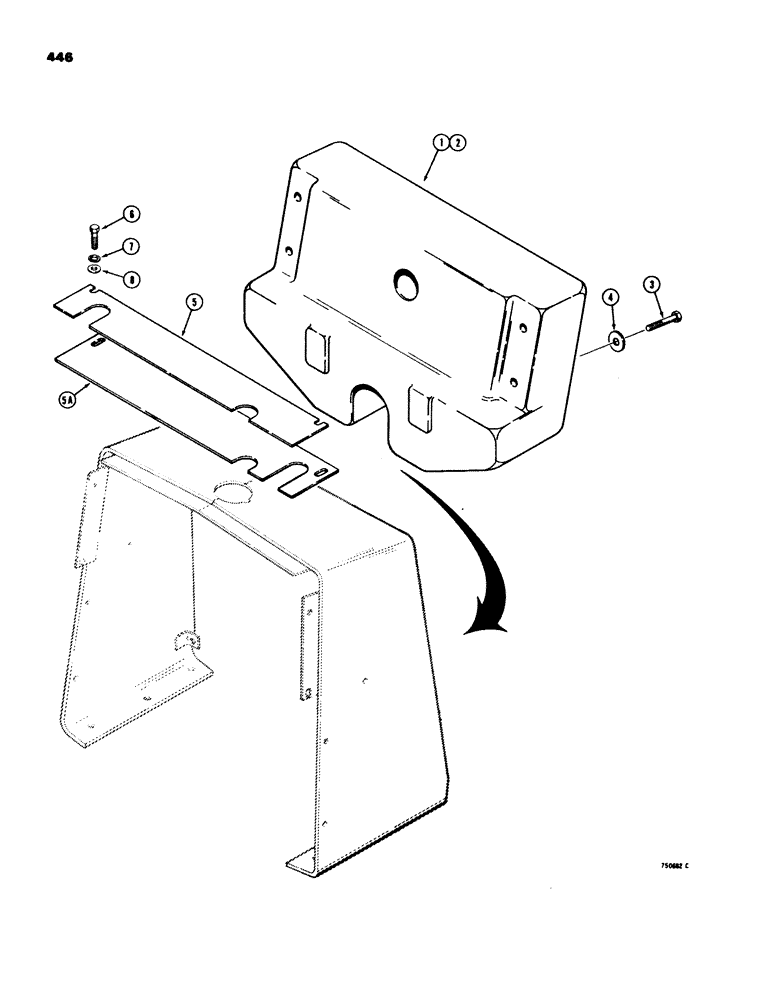

Запчасти Case 580C (446) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D69117

COUNTER

WEIGHT - front, 500 lbs, (247 kg)

1шт.

2

D69118

COUNTER

WEIGHT - front, 700 lbs, (318 kg)

1шт.

3

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, heat treated

4шт.

5

D69352

PLATE - mounting, used before tractor, Serial Range: -8961374

1шт.

5a

D76754

PLATE - mounting, used on tractor, Start Serial: 8961374

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

195-33

WASHER,1/2"

- flat, 1/2"

2шт.
