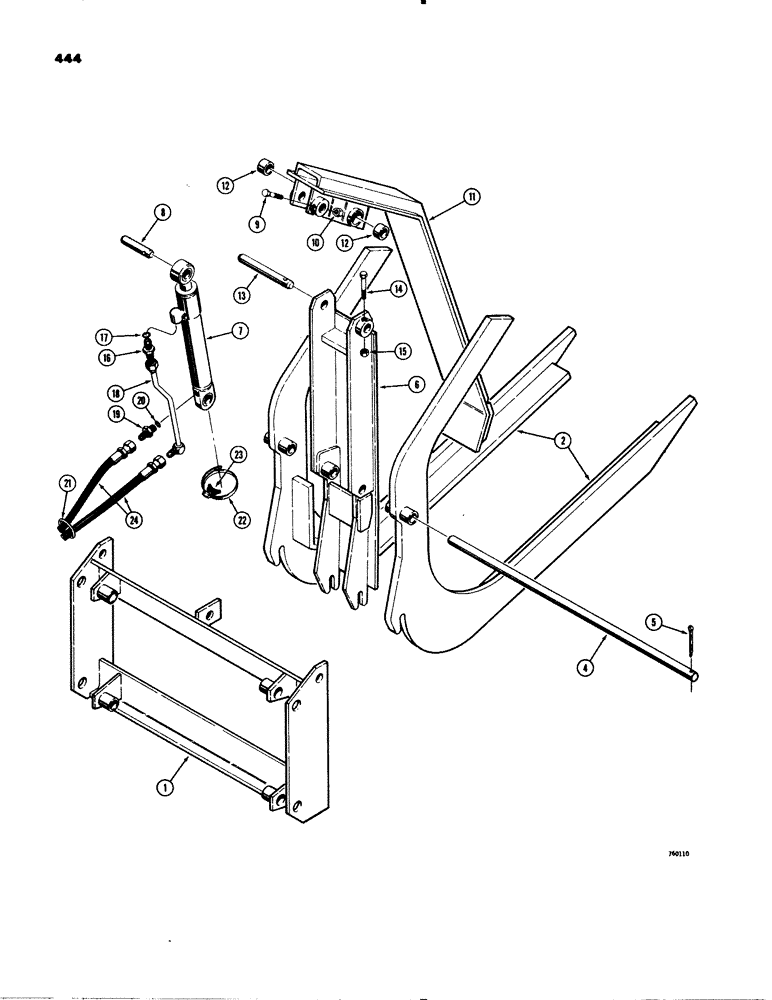

Запчасти Case 580C (444) - GRAPPLE ATTACHMENT, USED WITH LOGGING OR PALLET FORKS (09) - CHASSIS/ATTACHMENTS

1

D69200

FRAME

- pallet and logging fork

1шт.

2

D43124

FORK TEDDER

FORK - logging

2шт.

3

D47999

FORK

- pallet not, illustrated

2шт.

4

D69201

BAR

SHAFT - fork and grapple mouting

1шт.

5

132-152

PIN

- cotter, 1/4" dia x 1-3/4"

2шт.

6

D46133

FRAME - grapple

1шт.

7

REF

INSTRUCTION

CYLINDER - hydraulic, grapple, see Figure 386 or 388 for proper cylinder

1шт.

8

D46141

PIN,31.75mm OD x 101.6mm L

- cylinder mounting, upper

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

1шт.

10

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, 3/8" - 16 NC

1шт.

11

D46114

ARM - grapple, Includes: Ref. 12

1шт.

12

D32890

BUSHING

- arm

2шт.

13

D46142

PIN - mounting, Serial Range: arm-frame

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

1шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting - male, straight, Incl. Ref 17 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

18

D48028

TUBE - hose to cylinder, rod end

1шт.

19

D48030

CONNECTOR, ELEC

FITTING - special, restrictor, Includes: Ref. 20

1шт.

21

D48031

RING - hose

1шт.

22

214-624

CLAMP -, Serial Range: tube-cylinder

1шт.

23

D38648

BLOCK

SPACER - tube

1шт.

24

D34401

HOSE ASSY.

HOSE - hydraulic, 60" (1524 mm) long

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
