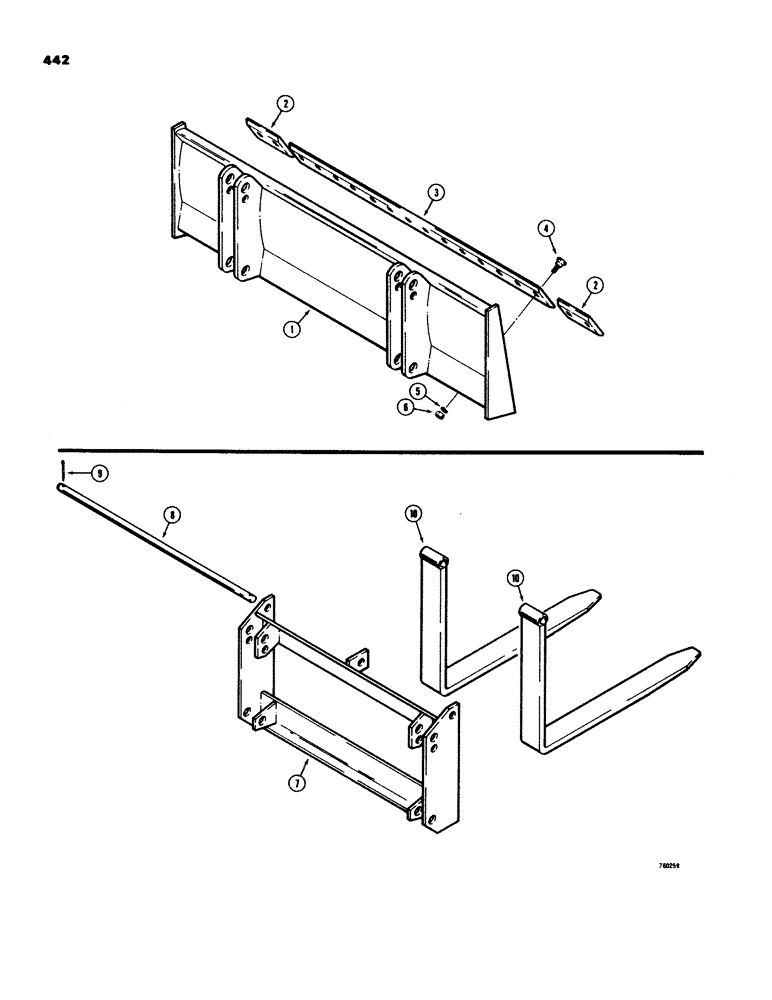

Запчасти Case 580C (442) - LOADER BLADE (09) - CHASSIS/ATTACHMENTS

D67599

BLADE - loader, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - loader blade

1шт.

2

38150

EDGE

CUTTING - moldboard, end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING - moldboard, center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

plow, 1/2" - 13 NC x 1-3/4"

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

hex, 1/2" - 13 NC

18шт.

7

D69200

FRAME

pallet fork

1шт.

8

D69201

BAR

SHAFT - fork mounting

1шт.

9

132-152

PIN

cotter, 1/4" dia x 1-3/4", pallet fork

2шт.

10

D47999

FORK

pallet

2шт.
