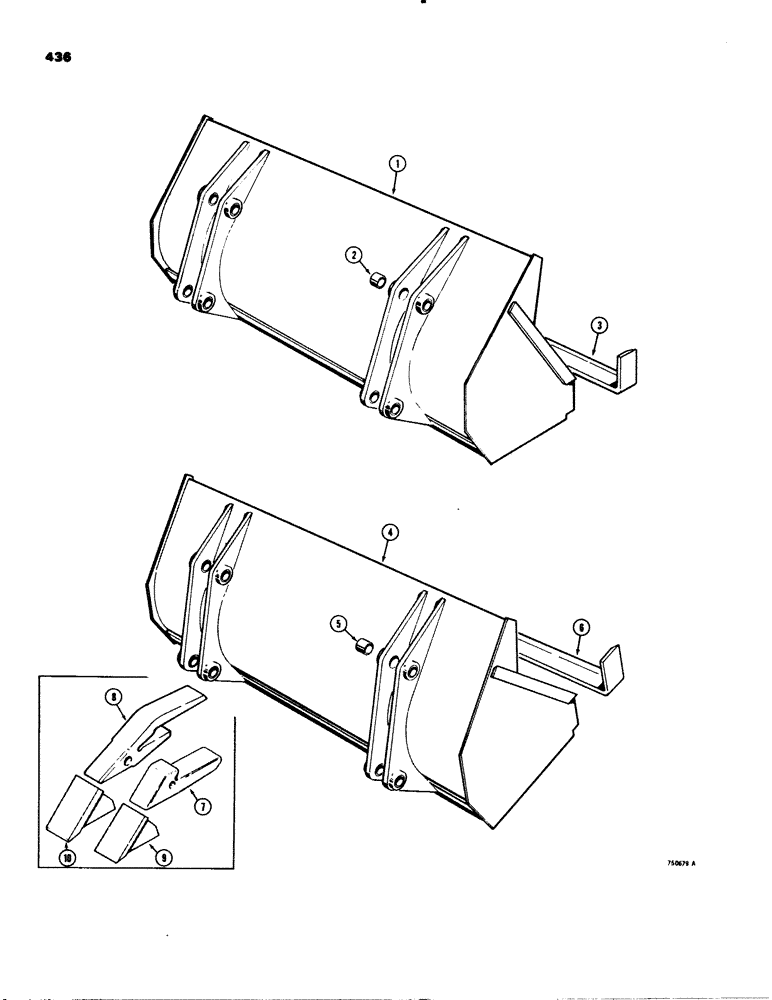

Запчасти Case 580C (436) - LOADER BUCKETS, SHORT LIP BUCKETS (09) - CHASSIS/ATTACHMENTS

D64731

BUCKET

ASSEMBLY - loader, Short Lip, 74" (1880 mm) wide, Includes: Ref. 1 - 3

1шт.

All bucket assemblies are machinery items. See Figure 002 for ordering.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear

8шт.

3

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

cutting

1шт.

D64733

BUCKET ASSEMBLY - loader, Short Lip, 80" (2032 mm) wide, Includes: Ref. 1 - 3

1шт.

All bucket assemblies are machinery items. See Figure 002 for ordering.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear

8шт.

3

D95073

EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk

1шт.

D64732

BUCKET ASSEMBLY - loader, Long Lip, 74" (1880 mm) wide, Includes: Ref. 4 - 6

1шт.

All bucket assemblies are machinery items. See Figure 002 for ordering.

1шт.

4

NSS

NOT SOLD SEPARAT

loader, long lip buckets

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear, long lip

8шт.

6

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

long lip buckets

1шт.

D64734

BUCKET ASSEMBLY - loader, Long Lip, 80" (2032 mm) wide, Includes: Ref. 4 - 6

1шт.

All bucket assemblies are machinery items. See Figure 002 for ordering.

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear, long lip

8шт.

6

D95073

EDGE, CUTTING,4” W x 78.47” L x 6” H x 3/4” Thk

long lip buckets

1шт.

D76259

BUCKET ASSEMBLY - loader, Long Lip, 82" (2083 mm) wide, Includes: Ref. 4 - 6

1шт.

All bucket assemblies are machinery items. See Figure 002 for ordering.

1шт.

For D76259 can use D122572 82" loader bucket

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear, long lip

8шт.

6

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

long lip buckets

1шт.

7

D26368

SUPPORT

SHANK - tooth, original equipment, bucket

1шт.

8

D58499

SUPPORT

SHANK - tooth, service option, bucket

1шт.

9

D58576

TOOTH

point, H and L manufactured, 4-7/8" (124 mm) long, bucket

1шт.

9

D58577

TOOTH

POINT - Fabco manufactured, 4-3/4" (121 mm) long, bucket

1шт.

10

D58592

TOOTH

POINT - H and L manufactured, heavy duty service option, 4-7/8" 9124 mm) long, bucket

1шт.

10

D58593

TOOTH

POINT - Fabco manufactured, heavy duty service option, 4-7/8" (124 mm) long, bucket

1шт.
