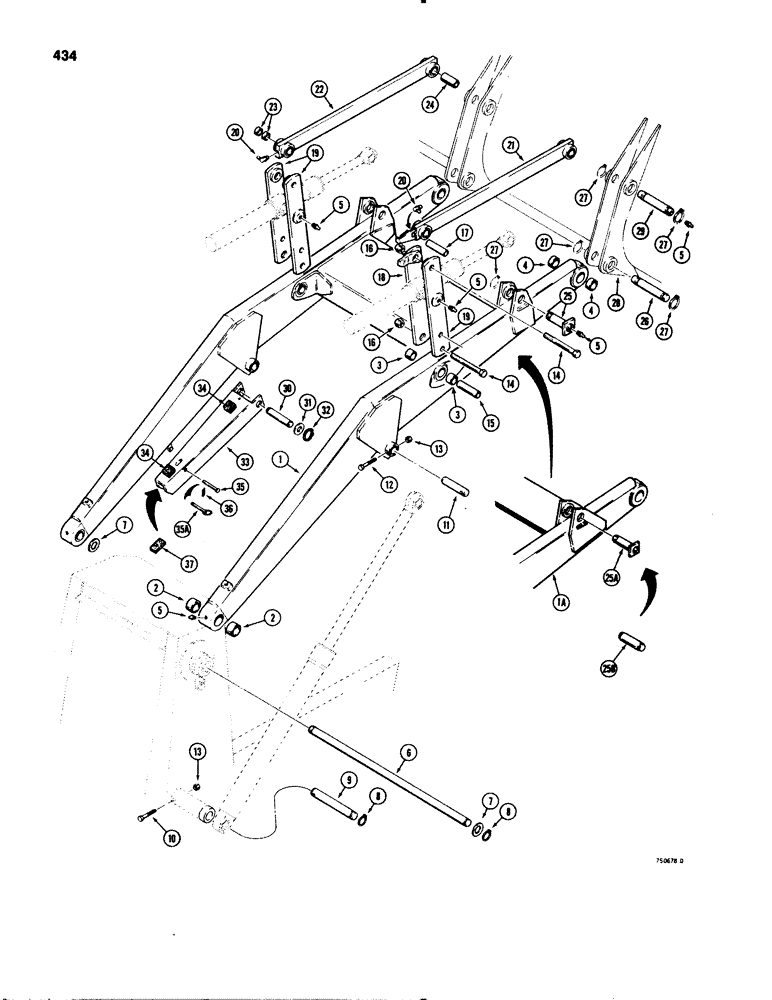

Запчасти Case 580C (434) - LOADER LIFT ARM FRAME AND RELATED PARTS, MODELS W/ LOADER SAFETY STRUT (09) - CHASSIS/ATTACHMENTS

1

D75274

ARM

FRAME - loader lift, with rectangular crossmember, Includes: Ref. 2 - 4

1шт.

1a

D79940

ARM

FRAME - loader lift, with oval crossmember, Includes: Ref. 2 - 4

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame pivot, part of Ref. 1 or 1A

4шт.

3

D37763

BUSHING

- bucket link pivot, part of Ref. 1 or 1A

4шт.

4

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- bucket mounting, part of Ref. 1 or 1A

4шт.

Illustration is incorrect. This is one 2.75" long bushing which goes through entire hole. Quantity required should read 2 rather than 4.

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight

10шт.

6

D62192

SHAFT

- lift frmae pivot

1шт.

7

D62194

WASHER

- flat

1шт.

8

D25280

SNAP RING,#175, Ext

4шт.

9

D62193

PIN

- lift cylinder pivot

2шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

11

D67357

PIN

- lift cylinder to frame, see Ref. 30

1-2шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

13

131-652

LOCK NUT,3/8"-16, GB

- hex, lock

4шт.

14

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

15

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

SPACER - bushing

2шт.

16

131-659

NUT,1"-8, GB

- hex, self lock

4шт.

17

D45904

BUSHING,26.67mm ID x 38.07mm OD x 99.21mm L

SPACER - bushing

2шт.

18

D72287

LINK

- bucket cylinder, inner, RH

1шт.

19

D44996

DRAG LINK

LINK - bucket cylinder

3шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

21

D30945

DRAG LINK

LINK - bucket, RH

1шт.

22

D30945

DRAG LINK

LINK - bucket, LH, Includes: Ref. 23 and 24

1шт.

23

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket, D30945 and D30947 links

2шт.

24

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- at link, D30945 and D30947 links

1шт.

25

D45001

PIN

- bucket cylinder mounting, used with Ref. 1 above

2шт.

25a

D77326

PIN

- bucket cylinder mounting, used with Ref. 1A above, uses (1) snap ring

1шт.

25b

D89321

PIN

- bucket cylinder mounting, used with Ref. 1A above, uses (2) snap rings

2шт.

26

D37286

PIN

- bucket mounting

2шт.

26

D126717

PIN,38.1mm OD x 179.83mm L

- bucket mounting

2шт.

26

D126718

PIN,38.1mm OD x 179.83mm L

- bucket mounting - grease able

2шт.

27

D25279

SNAP RING,M35, Int

RING - retaining

1шт.

28

REF

INSTRUCTION

BUCKET - loader, see Figure 436 or 438 for bucket

1шт.

29

D37287

PIN

- bucket mounting, upper

2шт.

30

D80739

PIN

- lift cylinder to frame, LH

1шт.

Models with Loader Safety Strut

1шт.

31

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

Models with Loader Safety Strut

1шт.

32

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

Models with Loader Safety Strut

1шт.

33

D77765

STRUT

- safety

1шт.

Models with Loader Safety Strut

1шт.

34

D79692

PAD

- safety strut

2шт.

Models with Loader Safety Strut

1шт.

35

D80879

PIN

- lock, 3/8" (10 mm) diameter, if used

1шт.

Models with Loader Safety Strut

1шт.

35a

L78801

AXLE PIN

PIN - lock, 1/2" (13 mm) diameter, if used

1шт.

Models with Loader Safety Strut

1шт.

36

136-160

COTTER PIN,Int, 13/64" x .156"

PAD - rubber, cylinder rod protection, if used

1шт.

Models with Loader Safety Strut

1шт.

37

D89691

STRIP

PAD - rubber, cylinder rod protection, if used

1шт.

Models with Loader Safety Strut

1шт.

38

345-44

ADHESIVE

- spray, for attaching rubber pads to metal, not shown

1шт.

Models with Loader Safety Strut

1шт.
