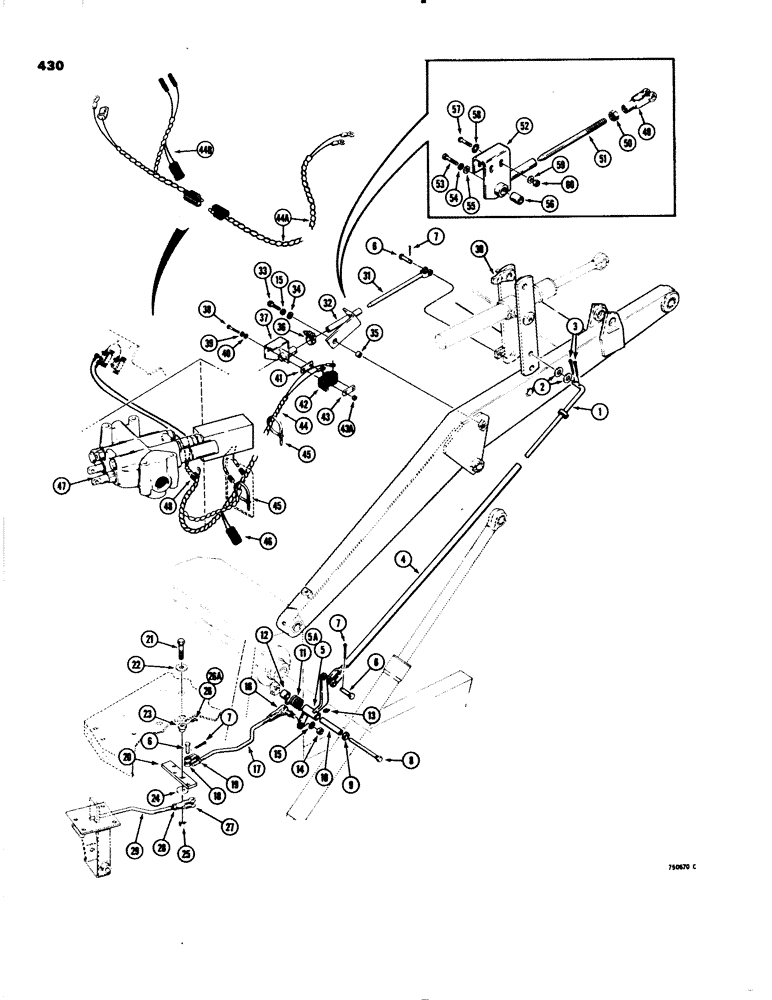

Запчасти Case 580C (430) - LOADER BUCKET POSITION CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D73911

ROD

- connecting, lever to dump link

1шт.

2

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

3

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

D37567

GUIDE

- rod

1шт.

5

D75689

LEVER

- bucket control, used with Refs. 10 and 12, order D81142

1шт.

5a

D81142

LEVER

- bucket control, used with Ref. 10 only, when replacing D75689 lever, discard Ref. 12

1шт.

6

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

8

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8" - 11 NC x 6"

1шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - heat treated

1шт.

10

D69565

SLEEVE

- bearing

1шт.

11

D72099

SPRING

- return

1шт.

12

D69566

SLEEVE

- spacer, if used, see Ref. 5A

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

SPRING - return

1шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

D64925

JOINT

- ball type

1шт.

17

D69604

ROD

- input, used with Parker valve only

1шт.

17

D92604

ROD

- input, used with Hydreco valve only

1шт.

18

L11182

YOKE,3/8" - 24

- offset

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

20

D69578

LINK

- connecting

1шт.

21

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4"

1шт.

22

95-8

WASHER,1/2"

flat 1/2"

1шт.

23

D75648

SPACER

- pivot, accepts iRef. 26, order D75756 and Ref. 26A

1шт.

D75648 spacer - Remove reference in description to ordering part nbr D75756 since it now subs to D75648.

1шт.

23

D75756

SPACER

- pivot, accepts Ref. 26A

1шт.

24

D64050

WASHER

- hardened

1шт.

25

131-645

NUT,Tinn, U, #10

- hex, lock, 1/2" - 13 NC

1шт.

26

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

FITTING - grease, 45 degree, 1/4" - 28 NF, if used

1шт.

26a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, 3/8"

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

29

D69960

ROD

- bucket control

1шт.

30

D72287

LINK

- bucket cylinder, RH inner

1шт.

31

D72147

ROD

- return-to-dig

1шт.

32

D72144

GUIDE

- rod

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

35

D95748

SPACER,10.34mm ID x 15.88mm OD x 7.11mm L

- guide

1шт.

36

D71880

CLAMP,22.23mm

- return-to-dig guide

1шт.

37

D72141

BRACKET

- return-to-dig switch mounting

1шт.

38

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- no. 6 - 32 NC x 1-1/2", plated

2шт.

39

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , If used Ext-Int Tooth, #6

2шт.

40

195-507

WASHER,#6

- flat, no. 6, plated

2шт.

41

D40924

SHIM

SPACER - switch mounting

1шт.

42

L54683

SWITCH

- return-to-dig

1шт.

43

L52496

PLATE

- switch mounting, if used

1шт.

43a

129-15

NUT,#6-32

If used #6-32

2шт.

43a

193-1003

NUT,Keps, w/LW,#6-32

- hex, special lock, no. 6 - 32 NC, plated, if used, does not require use of Ref. 39

2шт.

44

D72270

HARNESS

- return-to-dig, used before tractor, Serial Range: -8958213

1шт.

44a

D74848

HARNESS

- front, return-to-dig, used on tractor, Serial Range: -8958213

1шт.

44b

D74849

HARNESS

- rear, return-to-dig, used on tractor, Serial Range: -8958213

1шт.

45

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

1шт.

46

L11760

DIODE

- valve protecting

1шт.

47

REF

INSTRUCTION

VALVE - loader control, see Figures 306-312 and 330

1шт.

48

49838

CLAMP

- harness, if used

1шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - return-to-dig rod, Start Serial: 8959067

1шт.

50

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 16 NC, Start Serial: 8959067

1шт.

51

D75722

ROD

- return-to-dig, Start Serial: 8959067

1шт.

52

D75724

BRACKET

- return-to-dig switch mounting, Start Serial: 8959067

1шт.

53

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Start Serial: 8959067

1шт.

54

92-6

LOCK WASHER,3/8"

, Start Serial: 8959067

1шт.

55

195-25

WASHER,3/8"

- flat, 3/8", Start Serial: 8959067

1шт.

56

D76175

BUSHING

SPACER - guide, Start Serial: 8959067

1шт.

57

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- no. 6 -32 NC x 1-1/4", plated, Start Serial: 8959067

2шт.

58

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6, Start Serial: 8959067

2шт.

59

195-507

WASHER,#6

- flat, no. 6, plated, Start Serial: 8959067

2шт.

60

129-15

NUT,#6-32

, Start Serial: 8959067

2шт.
