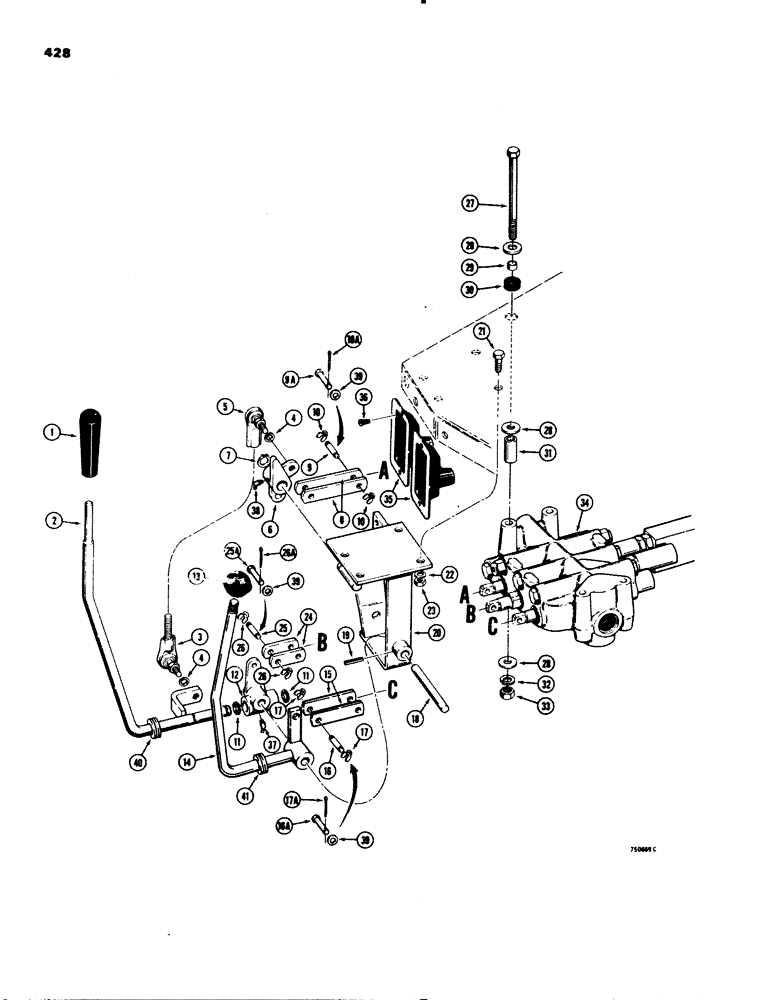

Запчасти Case 580C (428) - LOADER CONTROLS (3 SPOOL) (09) - CHASSIS/ATTACHMENTS

1

A37247

KNOB

- lever, lift and tilt

1шт.

2

D72231

LEVER

- loader control, lift and tilt

1шт.

3

D64789

JOINT

- ball type, tilt spool

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D69180

BALL JOINT

JOINT - ball type, tilt spool

1шт.

6

D72232

CRANK

BELLCRANK - lever

1шт.

D72232 pin (shaft) coming off p/n D72232, weldment shaft p/n D64791 or complete bracket p/n D146674

1шт.

7

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

8

D64746

LINK

- connecting

2шт.

9

D95632

PIN,7.9mm OD x 22.99mm L

- connecting, if used

2шт.

9a

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting, if used 5/16" x .940"

2шт.

10

D95092

RING

- retaining, if used

4шт.

10a

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , If used 3/32" x 1/2"

2шт.

11

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

2шт.

12

D64777

PITMAN

BLOCK - pivot

1шт.

13

D59912

KNOB

- lever, auxiliary spool

1шт.

14

D76517

LEVER

- auxiliary control

1шт.

15

D64747

STRAP

LINK - auxiliary control

2шт.

16

D95632

PIN,7.9mm OD x 22.99mm L

- link, if used

2шт.

16a

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link, if used 5/16" x .940"

2шт.

17

D95092

RING

- retaining, if used

4шт.

17a

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , If used 3/32" x 1/2"

2шт.

18

D64790

SHAFT

- retaining

1шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

20

D67594

MOUNTING PARTS

BRACKET - levers

1шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1, G5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

24

D69601

LINK

- connecting

2шт.

25

D95632

PIN,7.9mm OD x 22.99mm L

- connecting, if used

2шт.

25a

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting, if used 5/16" x .940"

2шт.

26

D95092

RING

- retaining, if used

4шт.

26a

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , If used 3/32" x 1/2"

2шт.

27

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

29

D66017

SPACER

SLEEVE - valve mounting

4шт.

30

D64797

GROMMET

- valve mounting

4шт.

31

D64745

SPACER

- valve

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

34

REF

INSTRUCTION

VALVE - loader control, 3 spool, see Figures 310 and 312

1шт.

35

D72302

BOOT

SEAL - controls

2шт.

36

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - no. 10 x 1/2", self tapping

4шт.

37

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree

1шт.

38

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree

1шт.

39

195-21

WASHER,5/16"

- flat, , plated, if used 5/16"

6шт.

40

D82594

RING

- plastic, replaces metal ring on some levers

1шт.

41

D83918

RING

- plastic, replaces metal ring on some levers

1шт.
