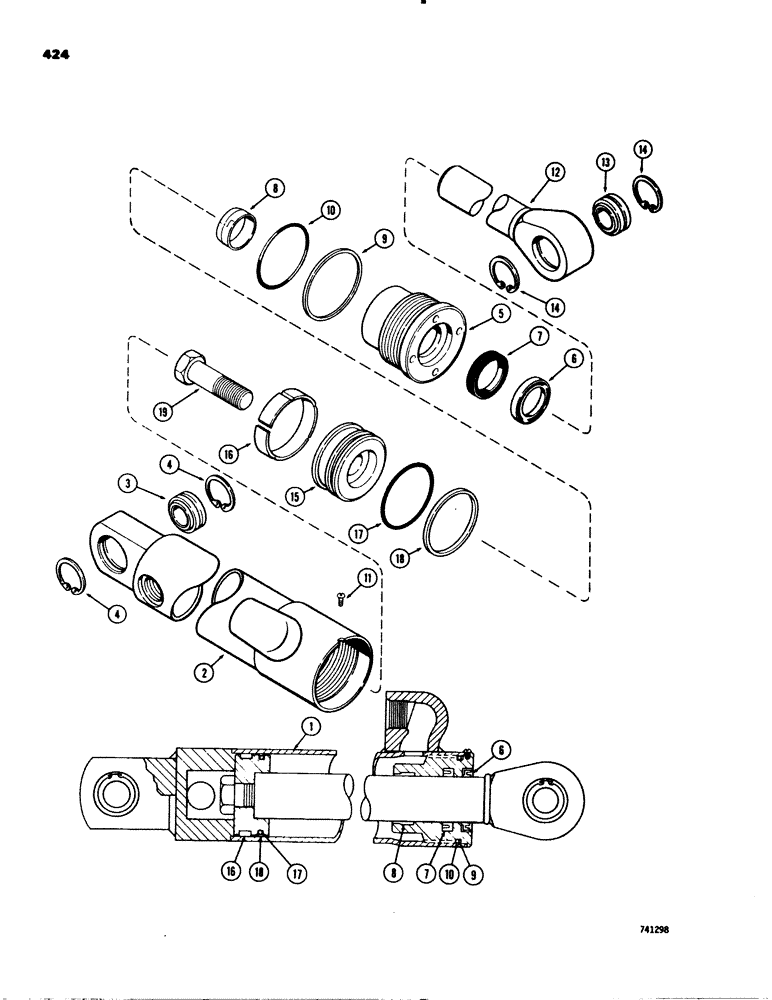

Запчасти Case 580C (424) - G33128 3-POINT HITCH PITCH CYLINDER (08) - HYDRAULICS

1

G33128

JACK BODY

CYLINDER ASSEMBLY - pitch, 2-1/2" (64 mm) ID x 7" (178 mm) stroke, Includes: Ref. 2 - 19

1шт.

2

G33129

TUBE,14.69" L

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- tube, self aligning

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

8

D27705

WIPER

- piston rod, inner, if used

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33134

ROD

ASSEMBLY - piston, 1-1/4" (32 mm) dia., Includes: Ref. 13 and 14

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- piston rod, self aligning

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

15

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

- cylinder

1шт.

16

G100714

RING

- wear, piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

17

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

18

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G33141

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G33141

KIT

- seal, Includes Refs. 6, 7, 8, 9, 10, 16, 17 and 18

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100775

SEAL

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
