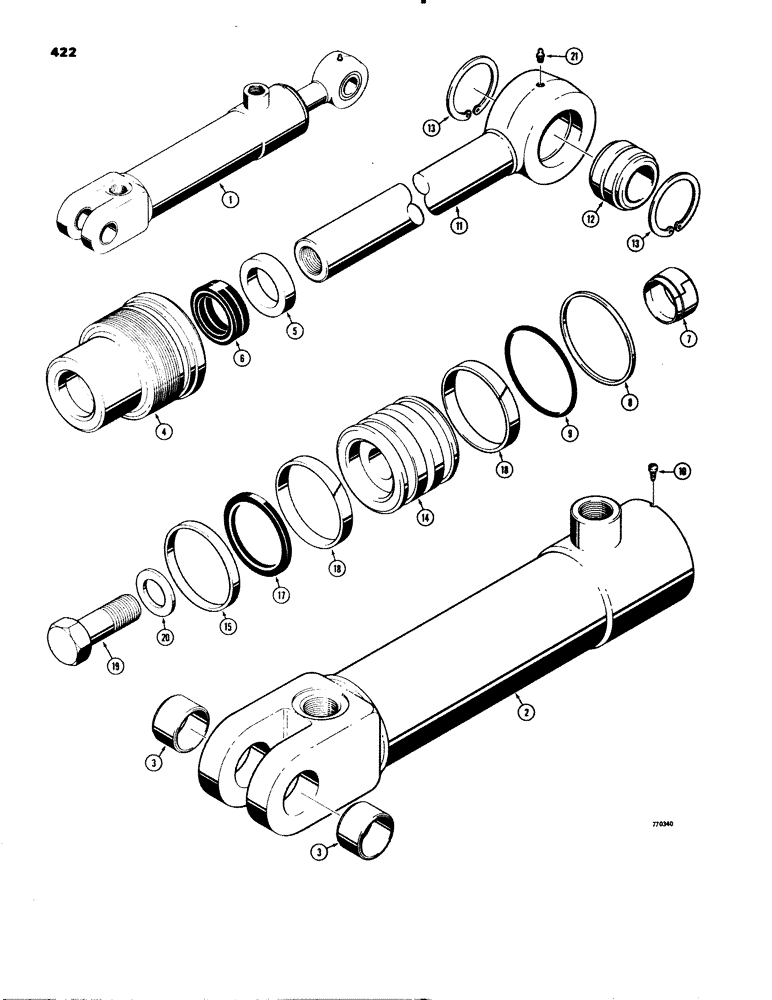

Запчасти Case 580C (422) - G101188 3-POINT HITCH TILT CYLINDER, WITH ONE PIECE PISTON (08) - HYDRAULICS

1

G101188

JACK BODY

CYLINDER ASSEMBLY - tilt, 2-1/2" (64 mm) ID x 6-5/16" (160 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

G32313

TUBE,14.43" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

- tube

2шт.

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

6

D36988

SEAL - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

7

D27705

WIPER

- piston rod, inner, if used

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33352

ROD

ASSEMBLY - piston, 1-1/4" (32 mm) dia., Includes: Ref. 12 and 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod, self aligning

1шт.

13

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

14

G100708

PISTON

- cylinder

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

16

RESERVED

1шт.

17

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

18

G100714

RING

- wear

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102407

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G102407

SEAL

KIT - seal, Includes Refs. 5, 6, 8, 9, 15, 17 and 18

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100775

SEAL

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
