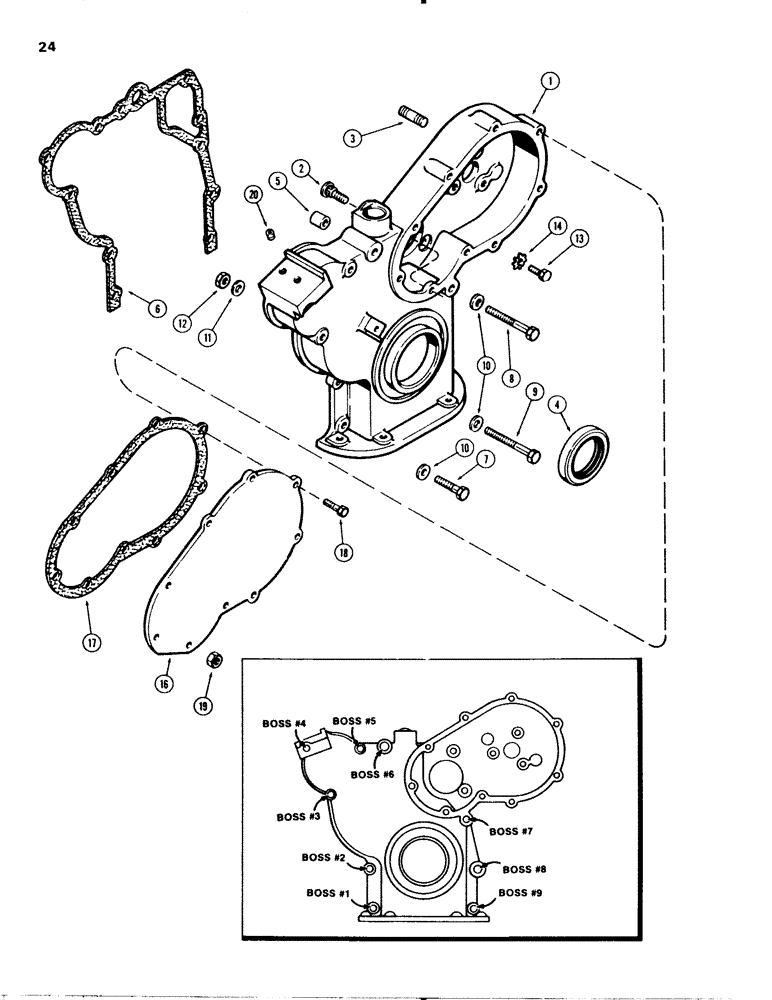

Запчасти Case 580C (024) - TIMING GEAR COVER, 207 DIESEL ENGINE (02) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gears (Replaces A138245), Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

1шт.

3

G102128

BOLT

- injection pump, 3/8" NC x 1-7/16"

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front, 2 x 3 x 1/2" (50.8 x 76.2 x 12.7 mm)

1шт.

5

A29442

RING

DOWEL - cover locating, 3/8 x 9/16 x 5/8" (9.53 x 14.29 x 15.88 mm)

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover (Boss #1, #2 and #9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/2" NC hex (Boss #8)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover, 3/8 x 2-3/4" NC hex (Boss #7)

1шт.

8

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover, 3/8 x 3" NC hex (Boss #6)

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover, 3/8 x 3-1/4" NC hex (Boss #3, #4 and #5)

3шт.

10

A50820

WASHER

- cover bolts, 3/8 x 3/4 x 1/8" (9.53 x 19.05 x 3.18 mm)

9шт.

11

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.53 x 20.64 x 1.59 mm) (Boss #3, #4 and #5)

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (Boss #3, #4 and #5)

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

16

A51908

COVER

PLATE - cover, injection pump gears

1шт.

17

A39925

GASKET

-, Serial Range: plate-cover

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

19

25-106

NUT,3/8"-16, G5

- cover stud, 3/8" NC hex

2шт.

20

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

PLUG - cover, 3/8" NC socket head

2шт.
