(414) - G101183 BACKHOE DIPPER EXTENSION CYLINDER, WITH ONE PIECE PISTON

Запчасти Case 580C (414) - G101183 BACKHOE DIPPER EXTENSION CYLINDER, WITH ONE PIECE PISTON (08) - HYDRAULICS

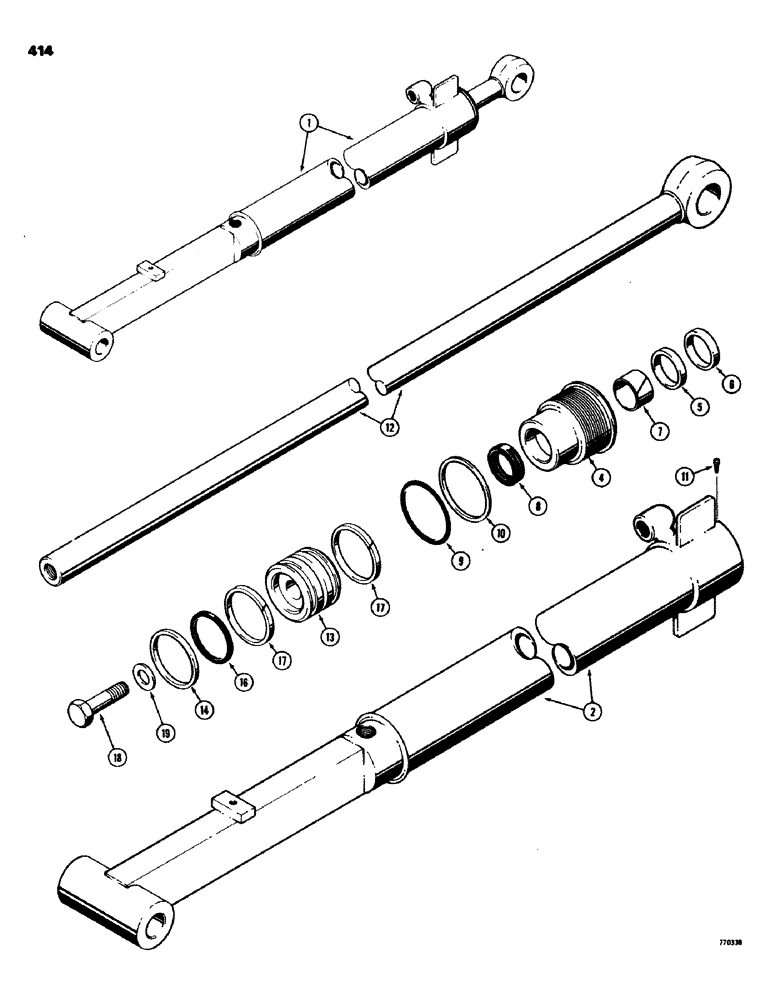

Схема запчастей Case 580C - (414) - G101183 BACKHOE DIPPER EXTENSION CYLINDER, WITH ONE PIECE PISTON (08) - HYDRAULICS
13
9
14
11
7
1
2
4
10
6
19
17
17
12
5
8
16
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G101183

CYLINDER

ASSEMBLY - dipper extension, 3" (76 mm) ID x 48" (1219 mm) stroke, see footnote, Includes: Ref. 2 - 19

1шт.

2

G32699

TUBE,72.80 mm L

- cylinder

1шт.

3

RESERVED

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

1542962C1

GLAND

Cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining; Order gland P/N 1542962C1

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

7

G34302

BEARING

- center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

8

D36969

CUP

SEAL - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33143

PISTON ROD

ROD - piston, 1-1/2" (38 mm) dia.

1шт.

13

G100442

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

15

RESERVED

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G102404

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G102404

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 14, 16 and 17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
