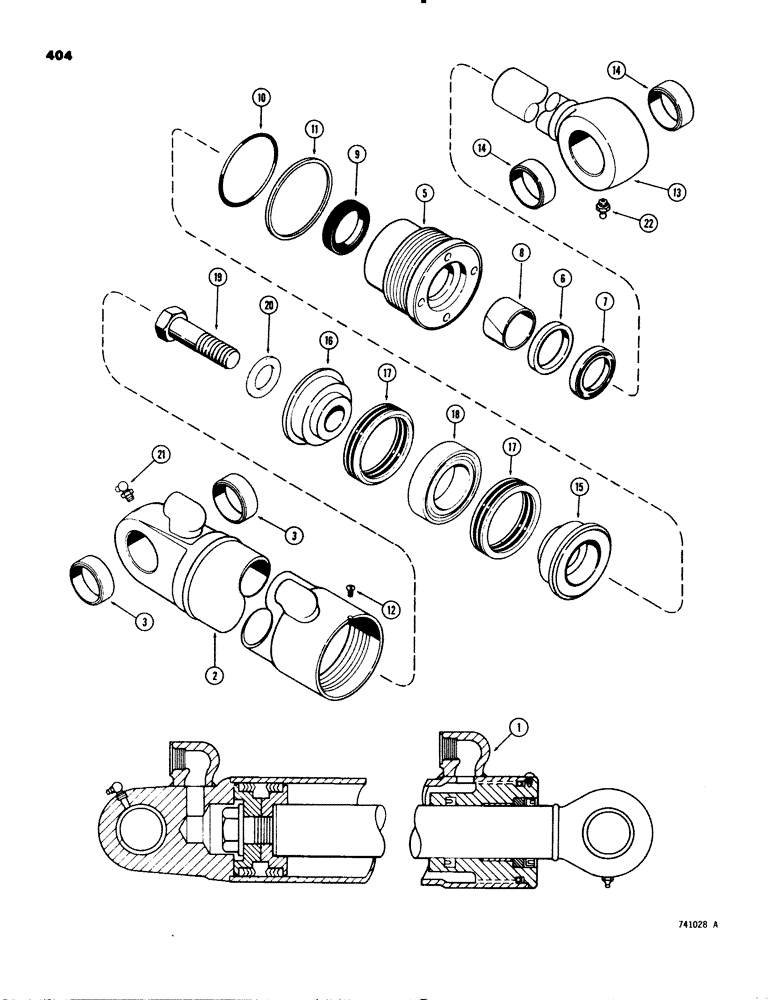

Запчасти Case 580C (404) - G32079 BACKHOE DIPPER CYLINDER, WITH TWO PIECE PISTON (08) - HYDRAULICS

1

G32079

CYLINDER

ASSEMBLY - dipper, 4" (102 mm) ID x 35-1/8" (892 mm) stroke, see footnote, Includes: Ref. 2 - 22

1шт.

2

G32831

SLEEVE CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

RESERVED

1шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

8

G34322

BEARING

- center

1шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G33154

ROD

ASSEMBLY - piston, 2" (51 mm) dia., Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33159

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, V-type

2шт.

Part of seal kit P/N G34594

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34594

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
