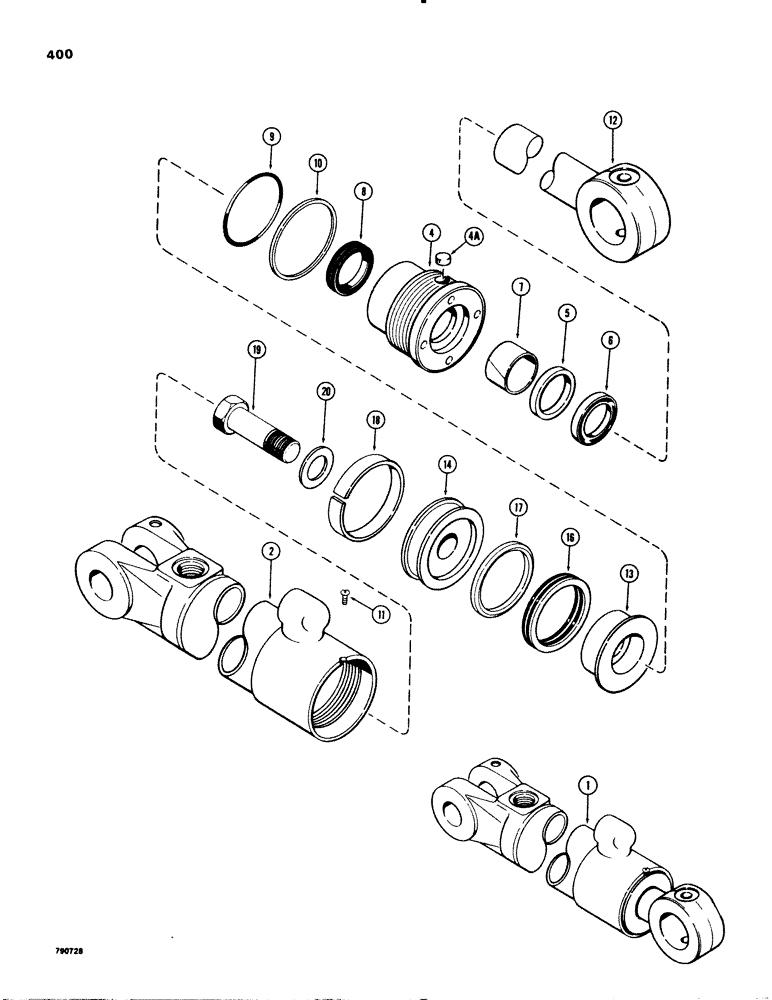

Запчасти Case 580C (400) - G33881 BACKHOE BOOM CYLINDER, WITH TWO PIECE PISTON (08) - HYDRAULICS

1

G33881

CYLINDER

ASSEMBLY - boom, 3-1/4" (83 mmm) ID x 42.1" (1069 mm) stroke, see footnote, order G101177, Includes: Ref. 2 - 20

2шт.

1

G106168R

REMAN-HYD CYLINDER

580C CASE CONSTRUCTION KING LOADER BACKHOE, ASSEMBLY, boom, Reman for New PN G33881

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

2

G33882

TUBE

- cylinder

1шт.

3

RESERVED

1шт.

G102875

GLAND

ASSEMBLY - cylinder, replaces glands without nylon plug, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder, Includes: Ref. 4A

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

7

PG34621

WASHER

BEARING - center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

8

D36970

CUP

SEAL - piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

12

G33885

ROD

- piston

1шт.

13

G33180

PISTON

- split, rod end

1шт.

14

G33182

PISTON

- split, bolt end

1шт.

15

RESERVED

1шт.

G33186

MISC PACKAGING

PACKING ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34653

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

ADAPTER - packing

1шт.

18

G33181

RING

- wear, piston

1шт.

19

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

- hex, 1" - 14 NF x 3", grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G34653

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10 and G33186

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
