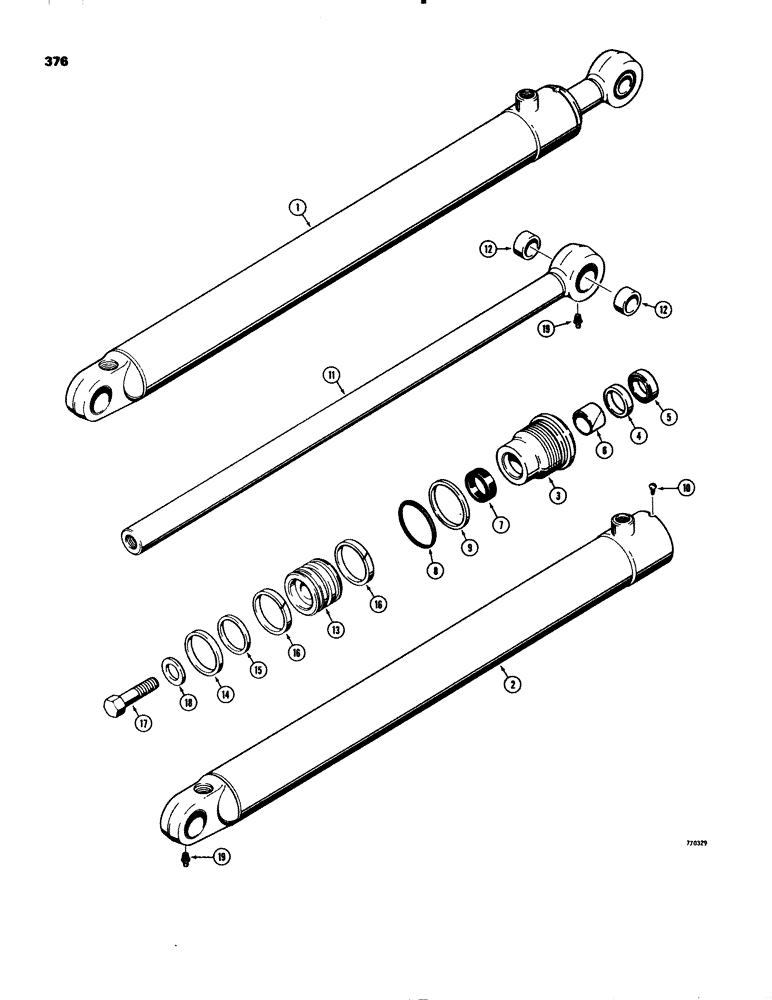

Запчасти Case 580C (376) - G101184 LOADER LIFT CYLINDER, WITH ONE PIECE PISTON (08) - HYDRAULICS

1

G101184

CYLINDER

ASSEMBLY - lift, RH and LH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, see footnote, Includes: Ref. 2 - 19

2шт.

2

G101514

CYLINDER

TUBE - cylinder

1шт.

G34633

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G34600

RING

- retaining

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G1022405

1шт.

Part of seal kit P/N G100777

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G35332

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) dia., Includes: Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod

2шт.

13

G100704

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G1022405

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G102405

SEAL

KIT - seal, Includes Refs. 5, 6, 7, 8, 9, 14, 15 and 16

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
