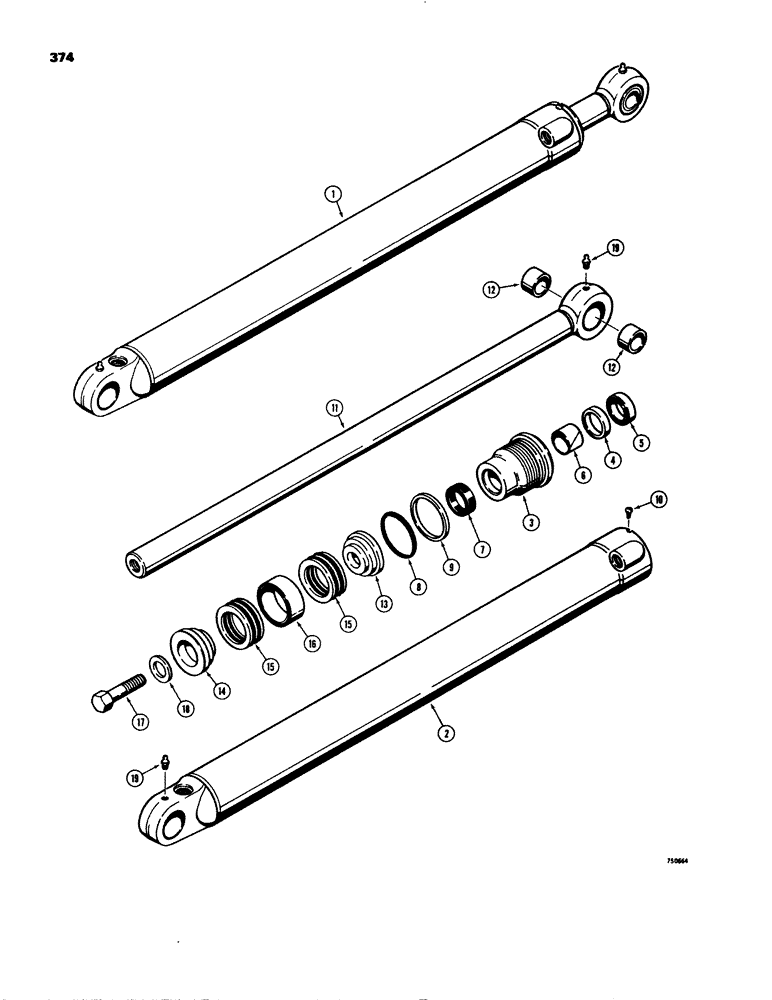

Запчасти Case 580C (374) - G100414 AND G100415 LOADER LIFT CYLINDERS, WITH TWO PIECE PISTON (08) - HYDRAULICS

1

G100415

CYLINDER ASSEMBLY - lift, RH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, Includes: Ref. 2 - 19

1шт.

cylinder assy - Mounting (thru) hole at base of cylinder housing accepts G33858 bushing.

1шт.

1

G100414

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, LH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, Includes: Ref. 2 - 19

1шт.

cylinder assy - Mounting (thru) hole at base of cylinder housing accepts G33858 bushing.

1шт.

2

G100413

CYLINDER

TUBE - RH cylinder

1шт.

2

G100412

CYLINDER

TUBE - LH cylinder

1шт.

G34633

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G34600

RING

- retaining

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34642

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G34642

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34642

1шт.

Part of seal kit P/N G100777

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34642

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34642

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G35332

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) dia., Includes: Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod

2шт.

13

G33331

PISTON

- split, rod end

1шт.

14

D28896

PISTON

- split, bolt end

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 15 and 16

1шт.

Part of seal kit P/N G34642

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34642

SEAL

KIT - seal, Includes: Refs. 5, 6, 7, 8, 9 and G33151

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
