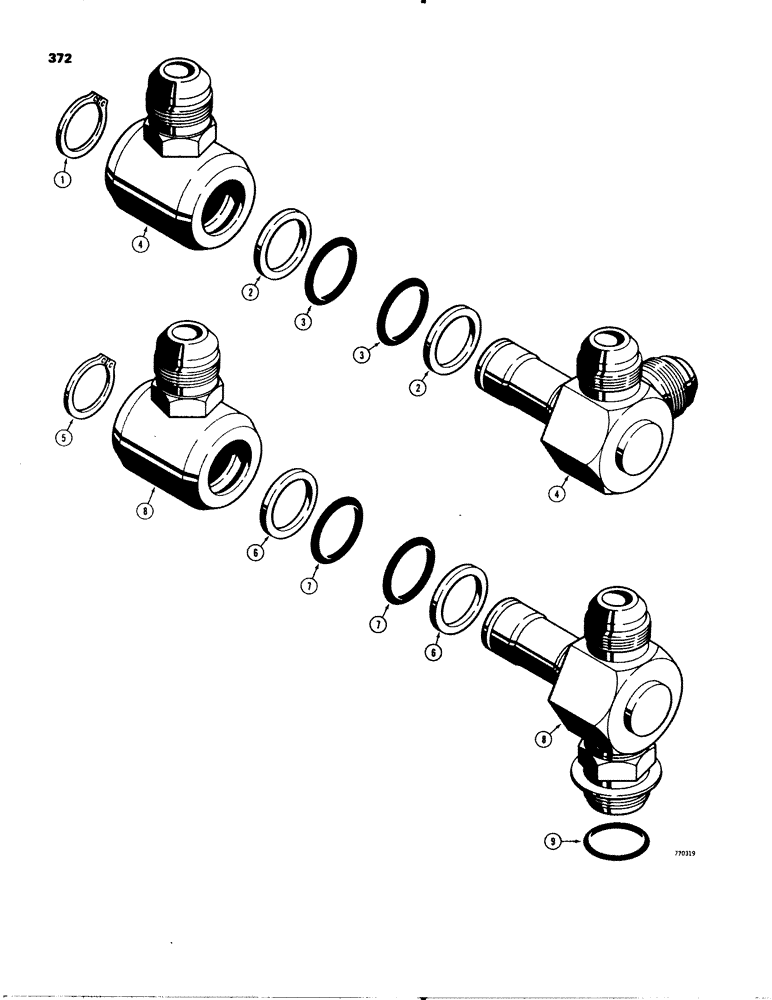

Запчасти Case 580C (372) - SWIVEL FITTINGS (08) - HYDRAULICS

D60947

FITTING

ASSEMBLY - swivel, backhoe boom circuit, if used, Includes: Ref. 1 - 4

1шт.

1

S70827

SNAP RING,#102, Ext

Ring, Snap, #102, Ext

1шт.

2

D61902

RING

- backup

2шт.

3

16202

O-RING,40544" ID x 13" OD x 1"

- internal

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - swivel fitting

1шт.

D60948

JOINT

FITTING ASSEMBLY - swivel, backhoe boom circuit, if used, Includes: Ref. 5 - 9

1шт.

5

S70827

SNAP RING,#102, Ext

Ring, Snap, #102, Ext

1шт.

6

D61902

RING

- backup

2шт.

7

16202

O-RING,40544" ID x 13" OD x 1"

- internal

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - swivel fitting

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- external

1шт.
