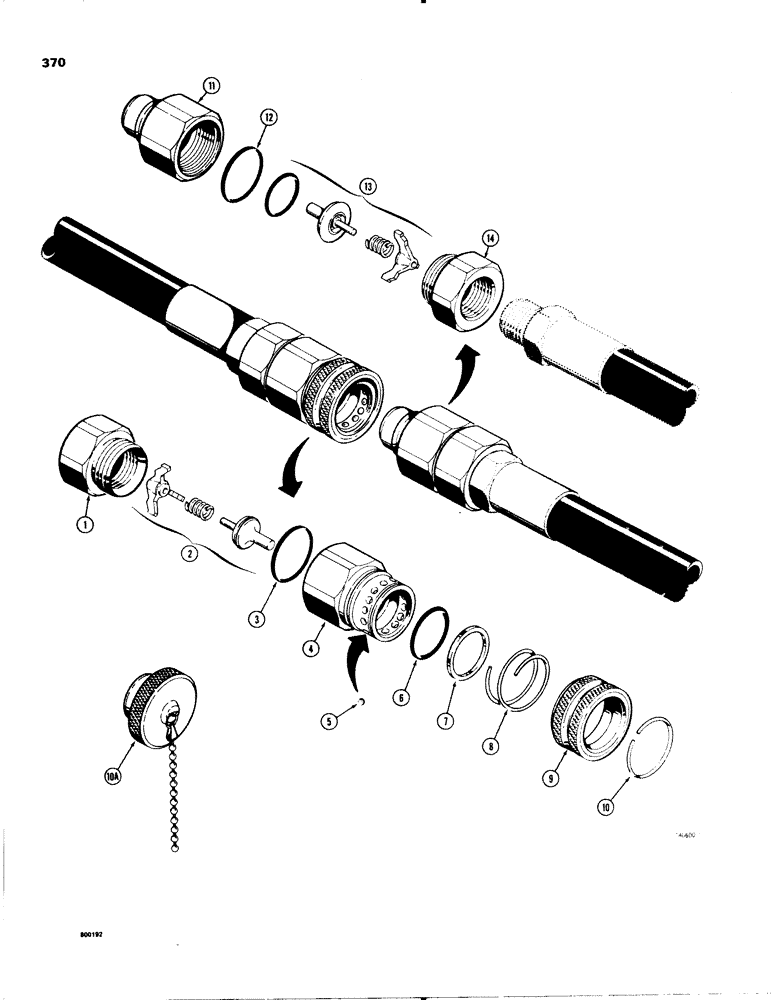

Запчасти Case 580C (370) - D52800 HYDRAULIC COUPLING (FEMALE) (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

COUPLING - hydraulic, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - coupling body

1шт.

4

D53916

BODY

coupling, straight end

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

coupling body, internal

1шт.

7

D54276

RING

- backup

1шт.

8

D31979

VALVE SPRING

sleeve

1шт.

9

D31980

SLEEVE CYLINDER

- ball retaining

1шт.

10

D31981

RING

retaining

1шт.

10a

D39924

PLUG

dust, for female coupling

1шт.

D52694

QUICK MALE COUPLING

- hydraulic, straight male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

coupling, straight male (d52694)

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - coupling body, straight male (d52694)

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, straight male (d52694)

1шт.

14

D31975

FITTING

end, coupling, straight male (d52694)

1шт.
