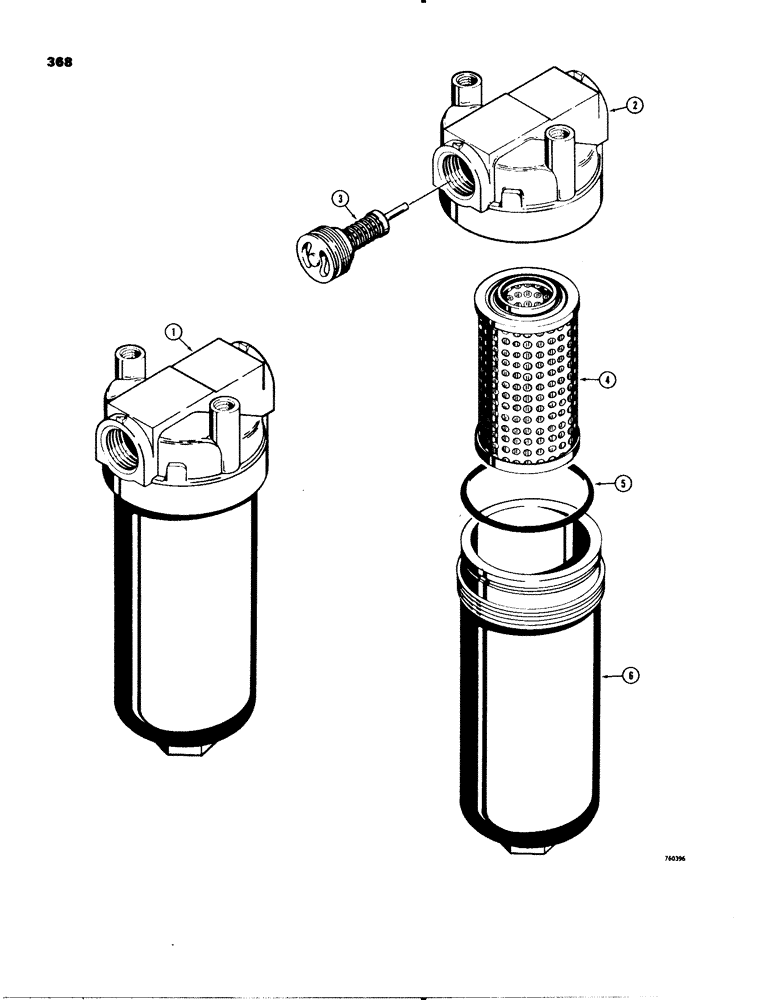

Запчасти Case 580C (368) - D73910 AND D84789 HYDRAULIC OIL FILTERS (08) - HYDRAULICS

1

D73910

FILTER ASSY

FILTER - hydraulic oil, identified by Marvel number M2737A, Includes: Ref. 2 - 6

1шт.

1

D84789

FILTER

- hydraulic oil, identified by Marvel number 303161-5000, Includes: Ref. 2 - 6

1шт.

D61903

HEAD

ASSEMBLY - D73910 filter only, Includes: Ref. 2 and 3

1шт.

N6050

FILTER

HEAD ASSEMBLY - D84789 filter only, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D58199

VALVE

- oil, by-pass, D73910 filter only, can be replaced by D87699 kit, see below

1шт.

3

D82933

VALVE

- oil, by-pass, D84789 filter only

1шт.

Part of Kit, P/N D87699

1шт.

D75831

FILTER

KIT - filter element, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

6

D61948

HOUSING

- filter

1шт.

D87699

FILTER

KIT - includes D82933 valve and D87439 sending unit, see Figures 78 and 82 Ref. number 33

1шт.
