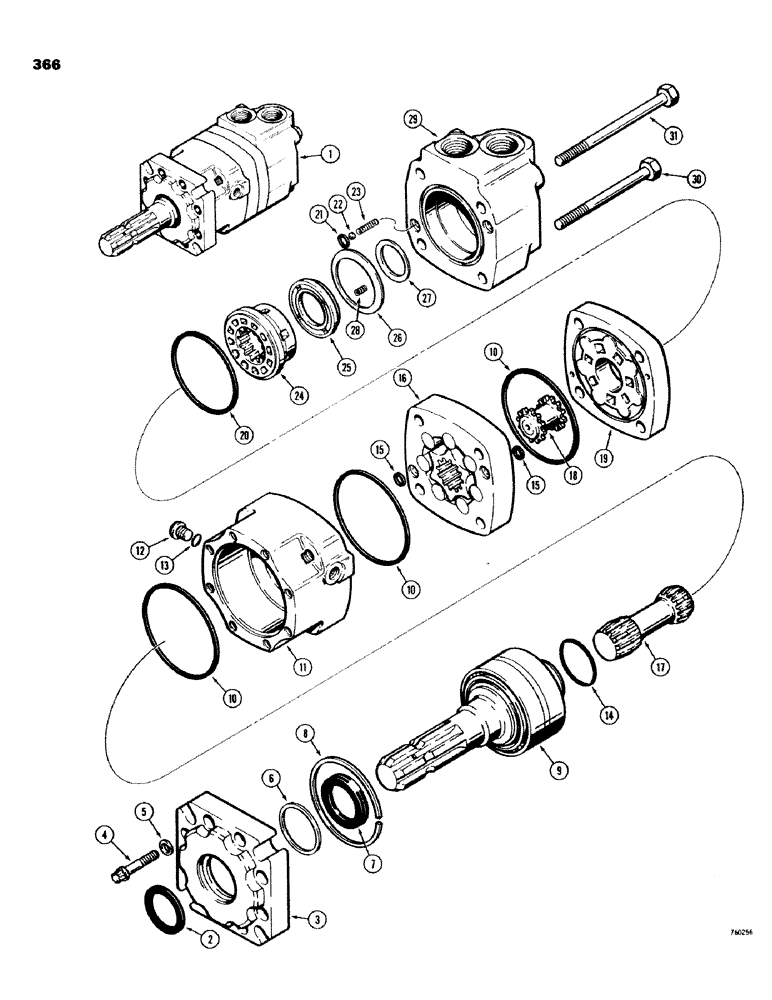

Запчасти Case 580C (366) - D71868 PTO HYDRAULIC MOTOR (08) - HYDRAULICS

1

D71868

HYDRAULIC MOTOR

MOTOR - hydraulic, PTO, Char-Lynn 109-1027-003, Includes: Ref. 2 - 31

1шт.

For motor identification see name plate on motor. Check model number of motor before ordering parts. See other hydraulic motor option on Figure 367A

1шт.

2

D74402

SEAL

- dust

1шт.

3

D74382

HOUSING - shaft end

1шт.

4

166-526

12 PT SCREW,Flg, 5/16" - 24 x 1 1/4", Gr 8

SCREW - 12 point flange, 5/16" - 24 NF x 1-1/4"

8шт.

5

C14301

WASHER

- special

8шт.

6

D74401

WASHER

RING - backup

1шт.

7

D74400

SEAL

- shaft

1шт.

8

D74380

SPACER - bearing

1шт.

9

D74379

SHAFT AND BEARING ASSEMBLY

1шт.

10

D74397

SEAL

- between housing

3шт.

11

D74381

HOUSING - bearing

1шт.

12

S114500

PLUG

- bearing housing, Includes: Ref. 13

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- S108180 plug

1шт.

14

D74399

O-RING

- bearing housing, inner

1шт.

15

D74398

SEAL

- gerotor

4шт.

16

D74385

GEROTOR ASSEMBLY

1шт.

17

D74383

DRIVE - main

1шт.

18

D74388

DRIVE - valve

1шт.

19

D74387

PLATE - valve

1шт.

20

D74396

SEAL

-, Serial Range: plate-housing

1шт.

21

D74395

SEAL - check ball

2шт.

22

211-101

BALL,1/4" Dia, Stainless

Check, Special 1/4" Dia, Stainless

2шт.

23

D74394

SPRING

- check ball

2шт.

24

D74389

LOCK VALVE

VALVE hydraulic, no longer available, must order entire assy.

1шт.

25

D74392

PLATE

ASSEMBLY - balancing

1шт.

26

D74390

SEAL

- outer

1шт.

27

D74391

SEAL

- inner

1шт.

28

S94568

SPRING - balancing plate

1шт.

29

D74393

HOUSING - closed end

1шт.

30

14-768

BOLT - hex, 7/16" - 20 NF x 4-1/2"

3шт.

31

14-784

BOLT - hex, 7/16" - 20 NF x 5-1/2"

1шт.
