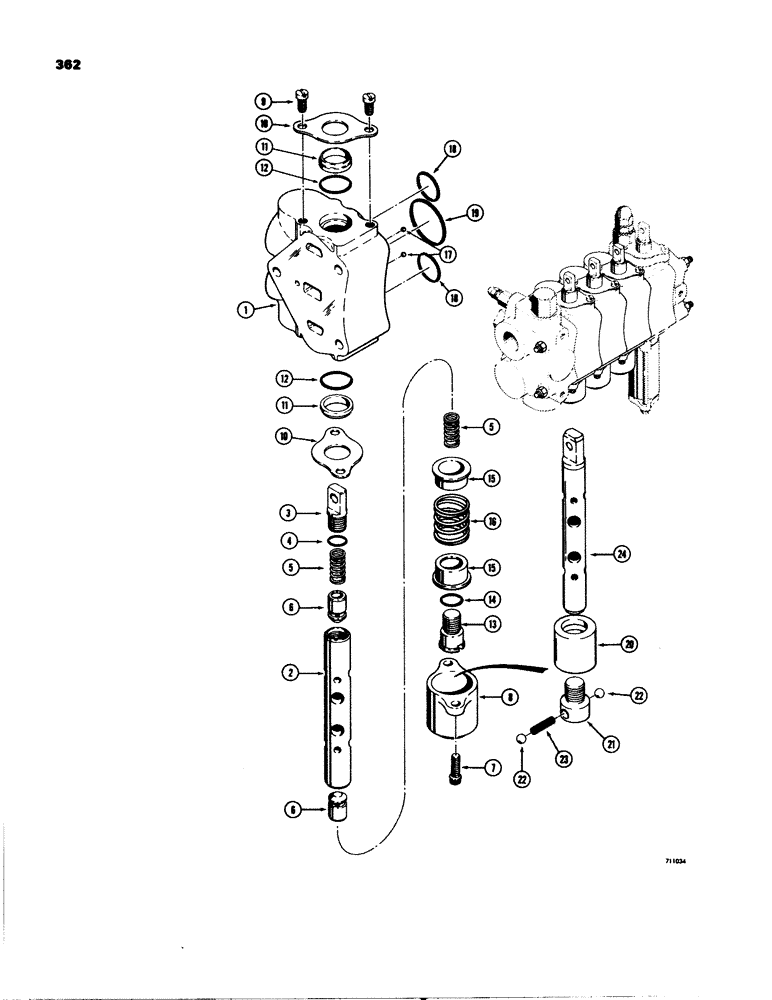

Запчасти Case 580C (362) - 3-POINT HITCH CONTROL VALVE, PITCH, TILT AND IMPLEMENT SECTIONS (08) - HYDRAULICS

D53594

HYD VALVE SECTION

SECTION - valve, pitch, tilt and implement spools, Includes: Ref. 1 - 19

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

D53616

EYE - spool

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, eye to spool

1шт.

Part of seal repair Kit P/N D59668

1шт.

5

D53601

SPRING

- poppet

2шт.

6

D53615

VALVE POPPET

POPPET - relief

2шт.

7

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - socket head, 12 point, 1/4" - 20 NC 3/4"

2шт.

8

D53613

CAP

- spool spring

1шт.

9

71-48

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

- machine, fillister head, 1/4" - 20 NC x 1/2"

2шт.

10

D53612

PLATE

RETAINER - seal

2шт.

11

D53610

WIPER SEAL

WIPER - spool

2шт.

Part of seal repair Kit P/N D59668

1шт.

12

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

2шт.

Part of seal repair Kit P/N D59668

1шт.

13

D53614

BOLT - spring retainer

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, retainer bolt

1шт.

Part of seal repair Kit P/N D59668

1шт.

15

D53656

RETAINER - centering spring

2шт.

16

D53606

SPRING - centering

1шт.

17

211-105

BALL,5/32" Dia

- steel, 5/32" Dia

2шт.

Part of seal repair Kit P/N D59668

1шт.

18

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- small

2шт.

Part of seal repair Kit P/N D59668

1шт.

19

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

- large

1шт.

Part of seal repair Kit P/N D59668

1шт.

D53549

KIT - motor spool, service option for implement spool, Includes: Ref. 20 - 24

1шт.

Part of seal repair Kit P/N D59668

1шт.

20

D54865

SLEEVE - detent

1шт.

21

D54864

KIT

RETAINER - ball

1шт.

22

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

23

D54863

SPRING - detent

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - motor

1шт.

D59668

SEAL

KIT - seal repair, Includes: Ref. 4, 11, 12, 14, 17, 18, 19 and Motor Spool Kit

1шт.
