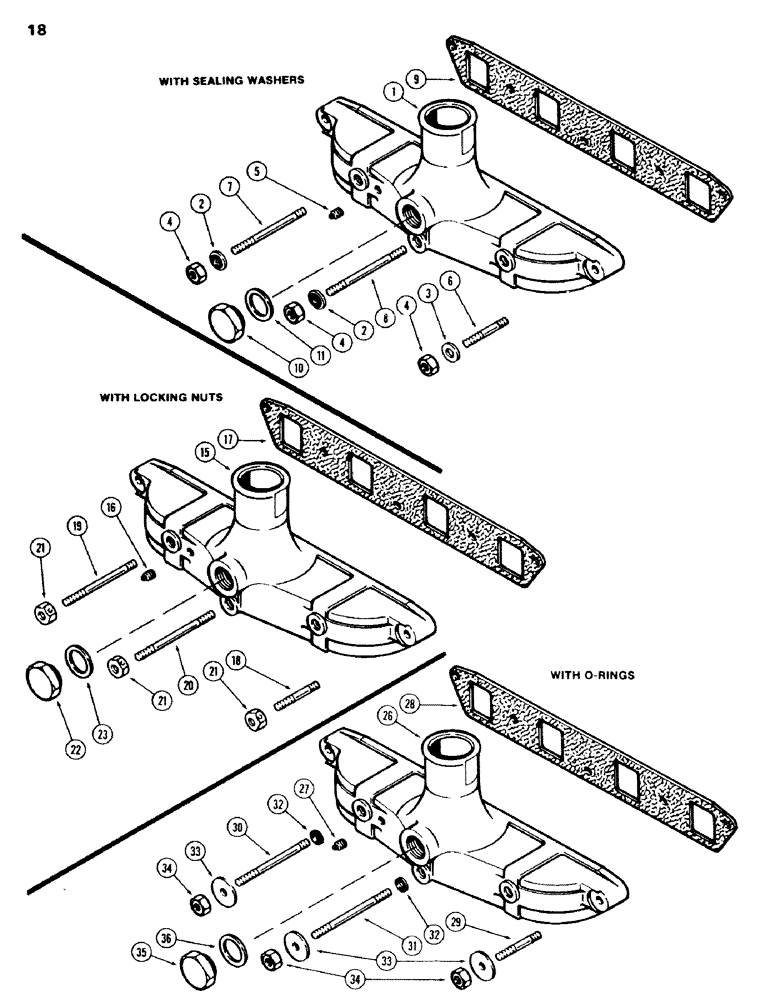

Запчасти Case 580C (018) - INTAKE MANIFOLD, 207 DIESEL ENGINE, WITH SEALING WASHERS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A152536
MANIFOLD
ASSEMBLY - intake, Includes: Ref. 2 - 5
1шт.
2
A50694
DISC
WASHER - sealing, with rubber insert (For intermediate and center stud holes)
3шт.
3
195-25
WASHER,3/8"
3/8 x 13/16 x 1/16" (For end stud holes)
2шт.
4
25-166
NUT,3/8"-16, G5, Hvy
3/8" NC hex
5шт.
5
221-11
PLUG,Sq Hd, 1/8"-27
1/8" PT, square head
1шт.
6
A140924
STUD
manifold end holes, 3/8" NC x 2-7/16"
2шт.
7
A153248
STUD
manifold intermediate holes, 3/8" NC x 4-13/16"
2шт.
8
A51500
STUD
manifold center hole, 3/8" NC x 5-5/16"
1шт.
9
G46871
GASKET
manifold head
1шт.
10
A20917
PLUG
manifold (Heater hole)
1шт.
11
A20916
MANIFOLD GASKET
plug
1шт.
15
A148898
MANIFOLD - intake (Order A152536)
1шт.
16
221-11
PLUG,Sq Hd, 1/8"-27
1/8" PT, square head
1шт.
17
G46871
GASKET
manifold head
1шт.
18
A140924
STUD
manifold end holes, 3/8" NC x 2-7/16"
2шт.
19
A51499
STUD
- manifold intermediate holes, 3/8" NC x 4-5/16"
2шт.
20
A51500
STUD
manifold center hole, 3/8" NC x 5-5/16"
1шт.
22
A20917
PLUG
manifold (Heater hole)
1шт.
23
A20916
MANIFOLD GASKET
plug
1шт.
26
A51876
MANIFOLD
ASSEMBLY - intake (Order A152536) , w/o-rings, Includes: Ref. 27
1шт.
27
221-11
PLUG,Sq Hd, 1/8"-27
1/8" PT, square head, w/o-rings
1шт.
28
G46871
GASKET
manifold to head, w/o-rings
1шт.
29
A140924
STUD
manifold end holes, 3/8" NC x 2-7/16", w/o-rings
2шт.
30
A51499
STUD
- manifold intermediate holes, 3/8" NC x 4-5/16", w/o-rings
2шт.
31
A51500
STUD
manifold center hole, 3/8" NC x 5/16", w/o-rings
1шт.
32
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
center and intermediate studs, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)
3шт.
33
D41740
WASHER
3/8 x 1 x 1/8" (9.53 x 25.4 x 3.18 mm), w/o-rings
5шт.
34
25-106
NUT,3/8"-16, G5
3/8" NC hex, w/o-rings
5шт.
35
A20917
PLUG
manifold (Heater hole), w/o-rings
1шт.
36
A20916
MANIFOLD GASKET
plug, w/o-rings
1шт.
Выбрано товаров: 31
