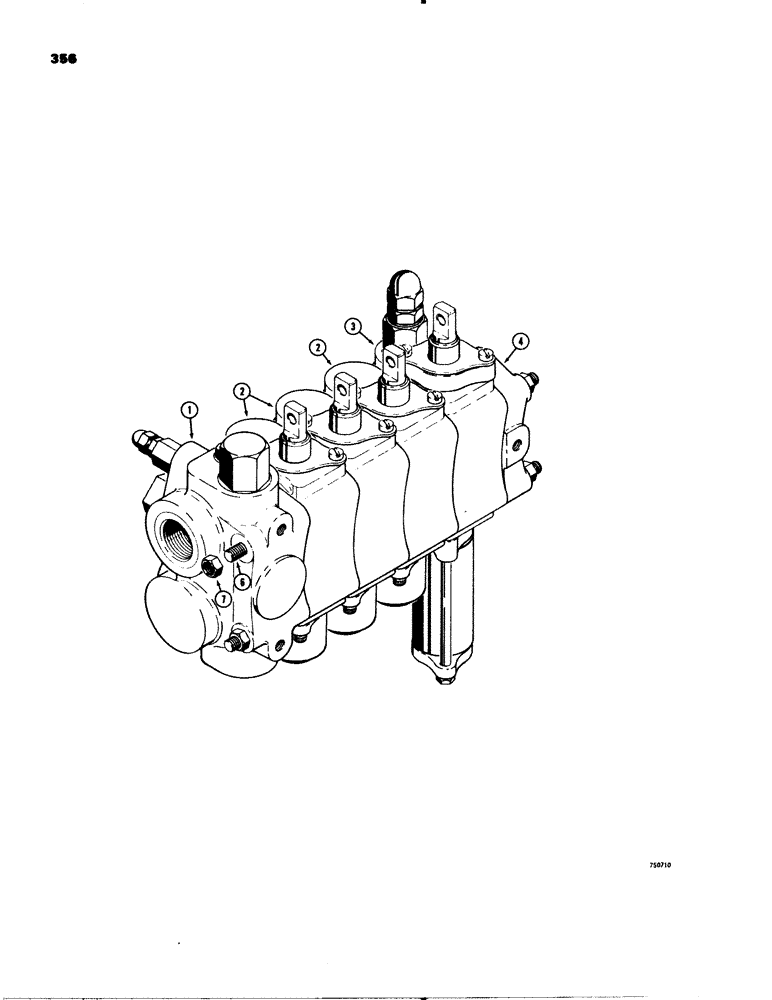

Запчасти Case 580C (356) - 3-POINT HITCH CONTROL VALVE (08) - HYDRAULICS

D52970

CONTROL VALVE

VALVE - 3-point hitch control, 4 spool, Includes: Ref. 1 - 7

1шт.

1

D53593

HYD VALVE SECTION

SECTION - inlet, parts list Figure 358

1шт.

2

D53594

HYD VALVE SECTION

SECTION - pitch, tilt and implement, parts list Figure 362

3шт.

3

D53595

HYD VALVE SECTION

SECTION - lift, parts list Figure 360

1шт.

4

D53600

HYD VALVE SECTION

SECTION - end

1шт.

5

D53598

LARGE PLATE

PLATE - orifice, see Figure 358, Ref. 24 for location in inlet section, not illustrated

1шт.

6

D53599

TIE-ROD

ROD - tie, valve sections

3шт.

7

129-524

NUT,3/8"-24, G8

6шт.
