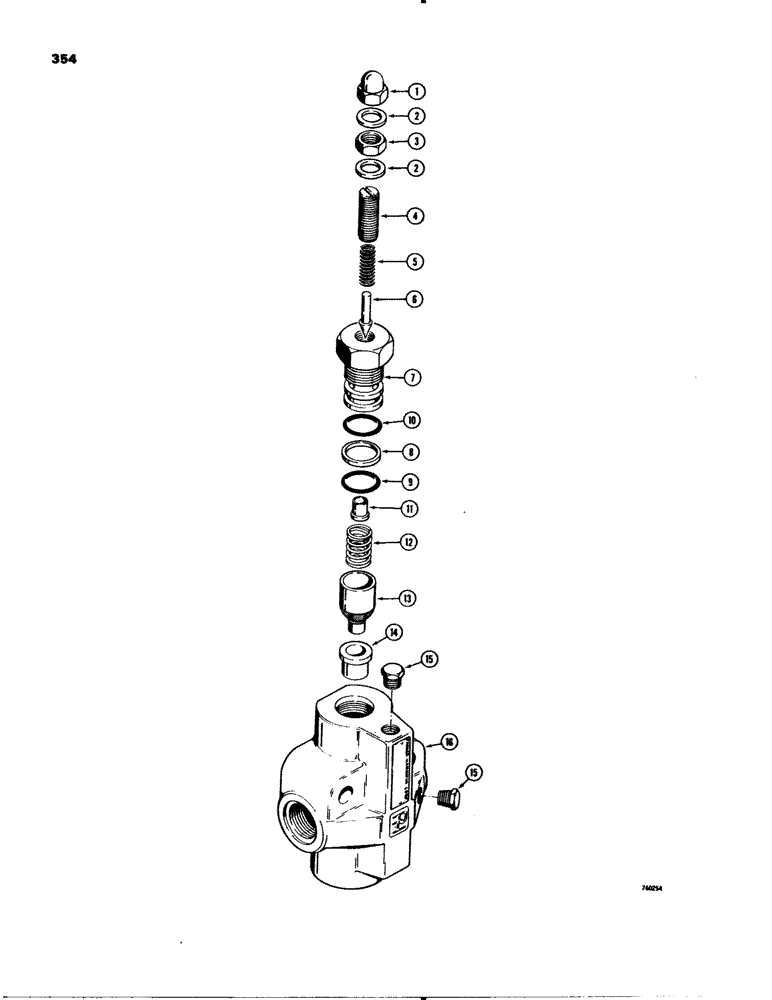

Запчасти Case 580C (354) - RELIEF VALVE, MODELS WITHOUT LOADER (08) - HYDRAULICS

D71668

VALVE

- relief, used on units without loader only, Includes: Ref. 1 - 16

1шт.

D71668 Port sizes--Inlets are 5/8" (both sides) the Outlet is 3/4" (out the bottom)--the relief cracks open at 0.6gpm at 2450psi--full flow is 12gpm at 2600psi

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, relief valve, 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

4

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - adjusting, 5/16" - 24 NF x 7/8"

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

D26262

CAP

- relief valve

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, L30444 O-ring

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

- relief valve cap, inner

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- relief valve

1шт.

13

D37062

VALVE

POPPET ASSEMBLY - relief valve

1шт.

14

D37063

SEAT

- poppet

1шт.

15

221-661

PLUG,Hex Hd, 1/8"-27

- hex head, 1/8" NPT

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- relief valve cap, outer

1шт.
