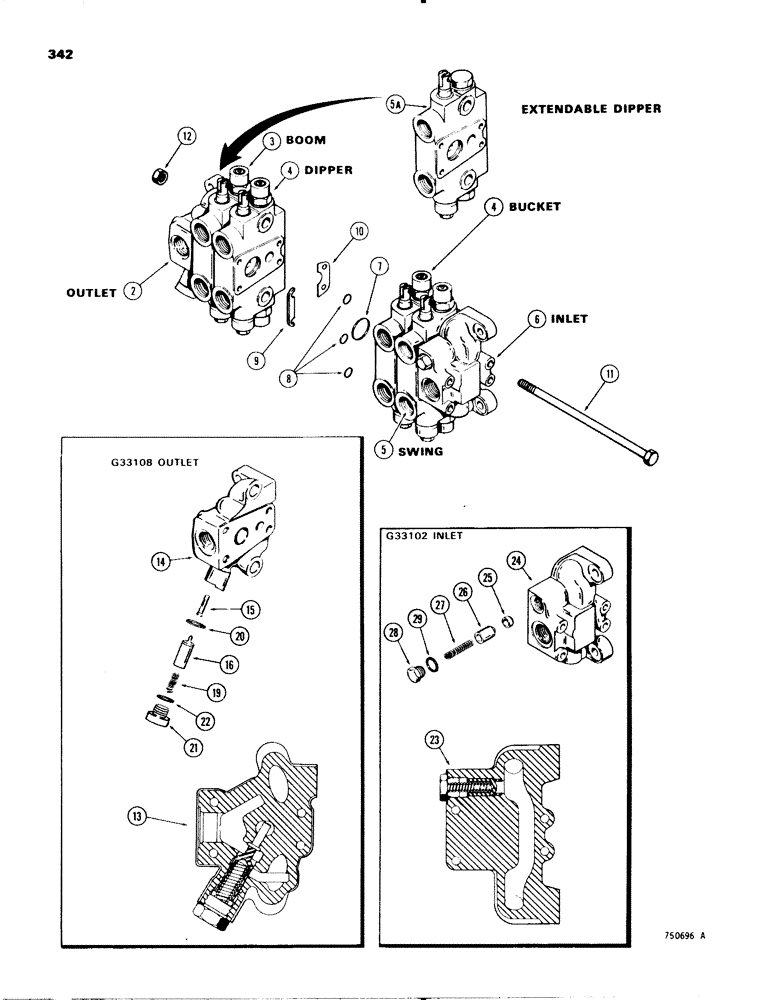

Запчасти Case 580C (342) - BACKHOE CONTROL VALVES, OUTLET SECTION (08) - HYDRAULICS

1

G34897

VALVE

ASSEMBLY - control, models without extendable dipper, backhoe, not shown assembled, order G100244, Includes: Ref. 2 - 12, Serial Range: -5355084

1шт.

1

G100244

VALVE

ASSEMBLY - control, models without extendable dipper, backhoe, not shown assembled, Includes: Ref. 2 - 12, Start Serial: 5355084

1шт.

1

G35360

VALVE

ASSEMBLY - control, models with extendable dipper, backhoe, not shown assembled, order G100196, Includes: Ref. 2 - 12, Serial Range: -5355084

1шт.

1

G100196

LOCK VALVE

ASSEMBLY - control, models with extendable dipper, backhoe, not shown assembled, Includes: Ref. 2 - 12, Start Serial: 5355084

1шт.

2

REF

INSTRUCTION

VALVE SECTION - outlet, see below

1шт.

3

REF

INSTRUCTION

VALVE SECTION - boom, see Figure 350

1шт.

4

REF

INSTRUCTION

VALVE SECTION - bucket and dipper, see Figure 344

2шт.

5

REF

INSTRUCTION

VALVE SECTION - swing, see Figure 348

1шт.

5a

REF

INSTRUCTION

VALVE SECTION - dipper extension, used in G35360 or G100196 valves only, see Figure 346

1шт.

6

REF

INSTRUCTION

VALVE SECTION - inlet, see below

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5-6шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

18шт.

9

G33964

SHIM,.002" Thk

Section, Port side of valve .002" Thk

5-6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of valve 0.051mm Thk

5-6шт.

11

G34942

TIE-ROD

BOLT - tie, valve section, 3/8" - 16 NC x 13-3/8", models without extendable dipper

4шт.

11

G34765

CYLINDER

BOLT - tie, valve sections, 3/8" - 16 NC x 15-3/4", models with extendable dipper

4шт.

12

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

13

G33108

MANIFOLD

VALVE SECTION ASSEMBLY - outlet, Includes: Ref. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - outlet section

1шт.

15

G33110

PISTON

regeneration sensing

1шт.

16

G34586

SPOOL,22mm OD x 59.87mm L

regeneration

1шт.

17

RESERVED

1шт.

18

RESERVED

1шт.

19

G33112

SPRING

- spool

1шт.

20

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

internal

1шт.

21

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Spool retaining, Includes Ref 22 Hex Soc, 1 3/16"-12 ORB

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

23

G33102

MANIFOLD

VALVE SECTION ASSEMBLY - inlet, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - inlet section

1шт.

25

G33104

SEAT

check valve poppet, inlet section

1шт.

26

G33105

VALVE POPPET

check, inlet section

1шт.

27

G33106

SPRING

check valve, inlet section

1шт.

28

A39586

PLUG

check, inlet section

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug, inlet section

1шт.
