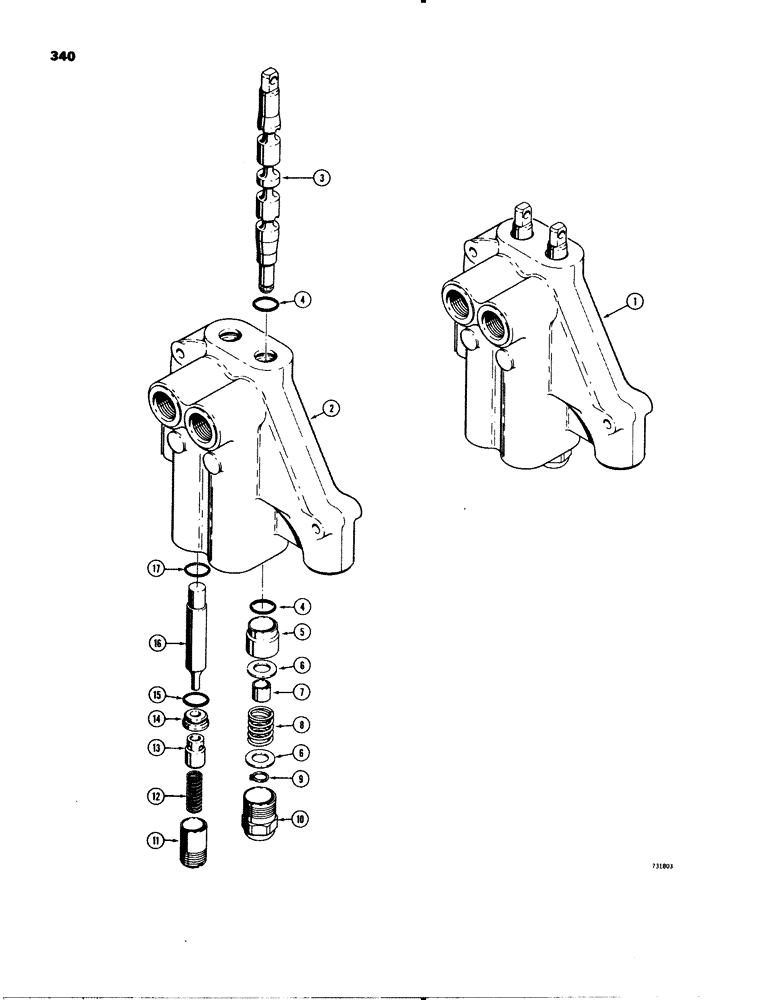

Запчасти Case 580C (340) - STABILIZER CONTROL VALVE (08) - HYDRAULICS

1

D62348

VALVE

ASSEMBLY - stabilizer control, Cessna no. 39042-AAE, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

D56443

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- valve spool

4шт.

5

D65439

BUSHING - valve spool

2шт.

6

N6470

WASHER

- spring retainer

4шт.

7

D56909

BUSHING

SPACER - spring

2шт.

8

D56445

SPRING

- spool return

2шт.

9

A27020

RING

- retaining, washer

2шт.

10

F35196

CAP

- spool end

2шт.

11

D59653

PLUG

- spring retainer

2шт.

12

D56444

SPRING

- poppet

2шт.

13

D59654

VALVE

POPPET - valve

2шт.

14

D56455

SEAT

- plunger

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

2шт.

16

D59655

PISTON

PLUNGER - valve

2шт.

17

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plunger

2шт.
