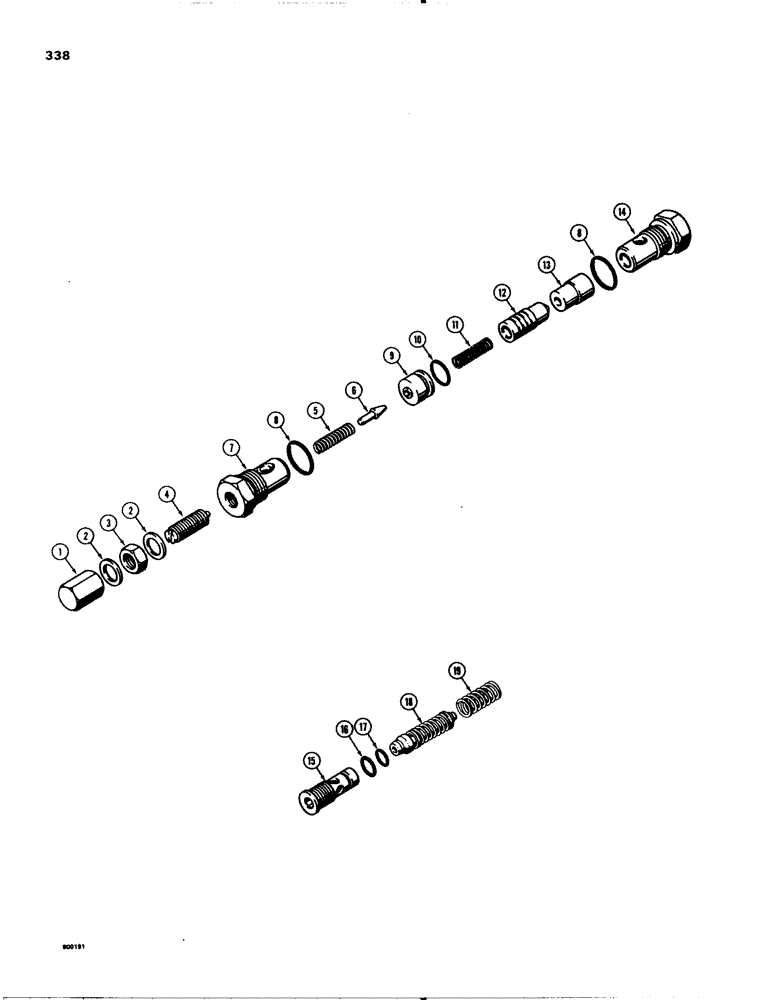

Запчасти Case 580C (338) - HYDRECO LOADER CONTROL VALVE, MAIN RELIEF VALVE (08) - HYDRAULICS

1

L32299

NUT

hex, dome

1шт.

2

D26763

WASHER

special

2шт.

3

25-158

JAM NUT,Jam, 1/2"-20, G5

hex, lock, 1/2" - 18 NF

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

adjusting

1шт.

5

D24763

SPRING

plunger

1шт.

6

D24762

VALVE

PLUNGER - relief

1шт.

7

D82718

BODY

CAP - valve

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

cap and plug

2шт.

9

D82716

VALVE

SEAT - plunger

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

seat

1шт.

11

D82724

SPRING

poppet

1шт.

12

D72745

VALVE

POPPET - main relief

1шт.

13

D82715

VALVE

SEAT - poppet

1шт.

14

D82719

PLUG

main relief valve

1шт.

N6582

VALVE, PRESSURE RELI

ASSEMBLY - secondary relief

2шт.

15

N6717

PLUG

seat, secondary relief valve

1шт.

16

D24754

GASKET

O-RING - outer, secondary relief valve

1шт.

17

A8613

O-RING,0.426" ID x 0.566" OD

inner, secondary relief valve

1шт.

18

N6582

VALVE, PRESSURE RELI

CATRIDGE ASSEMBLY - secondary relief

1шт.

19

N6594

VALVE SPRING

inner, secondary relief

1шт.
