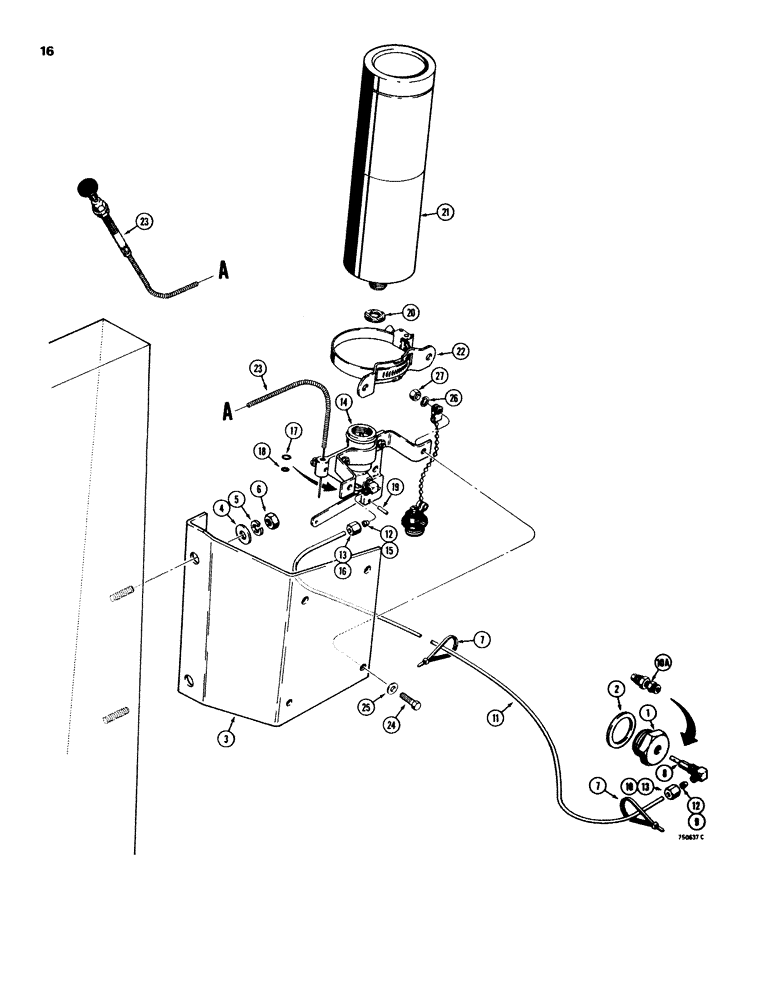

Запчасти Case 580C (016) - COLD START SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
L10283
PLUG
- manifold, used with Ref. 8
1шт.
1
D79761
PLUG
- manifold, used with Ref. 10A
1шт.
2
A20916
MANIFOLD GASKET
WASHER - special
1шт.
3
D70731
BRACKET
- cold start
1шт.
4
195-21
WASHER,5/16"
- flat, 5/16"
2шт.
5
92-5
LOCK WASHER,5/16"
2шт.
6
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
2шт.
7
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - tie, tubing
2шт.
D55946
JET
INJECTOR ASSEMBLY - cold start, 90 degree, used with L10283 manifold plug only, Includes: Ref. 8 - 10
1шт.
8
NSS
NOT SOLD SEPARAT
INJECTOR - D55946 assembly, 90 degree
1шт.
9
222-650
SLEEVE,1/8" Tube, Comp
1шт.
10
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1шт.
10a
D81319
NOZZLE INJECTION
INJECTOR ASSEMBLY - cold start, straight, used with D79761 manifold plug only
1шт.
D55947
TUBE
ASSEMBLY - valve to injector, Includes: Ref. 11 - 13
1шт.
11
NSS
NOT SOLD SEPARAT
TUBE - valve to injector, 60" (1524 mm) long
1шт.
12
222-650
SLEEVE,1/8" Tube, Comp
2шт.
13
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1шт.
D88743
VALVE
ASSEMBLY - actuator, Includes: Ref. 14 - 21
1шт.
14
NSS
NOT SOLD SEPARAT
VALVE - actuator
1шт.
15
222-650
SLEEVE,1/8" Tube, Comp
1шт.
16
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1шт.
D55951
REPAIR KIT
KIT - service, valve seal, Includes: Ref. 17 - 19
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING - internal plunger, top
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - internal plunger, bottom
1шт.
19
NSS
NOT SOLD SEPARAT
PIN - drive, 3/32"
1шт.
20
D74422
GASKET
SEAL - valve cylinder
1шт.
21
D55767
CYLINDER
- cold start
1шт.
22
D55949
BRACKET
CLAMP - cylinder
1шт.
23
D71332
CABLE
- cold start control
1шт.
24
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
25
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
26
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
27
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
4шт.
Выбрано товаров: 33
