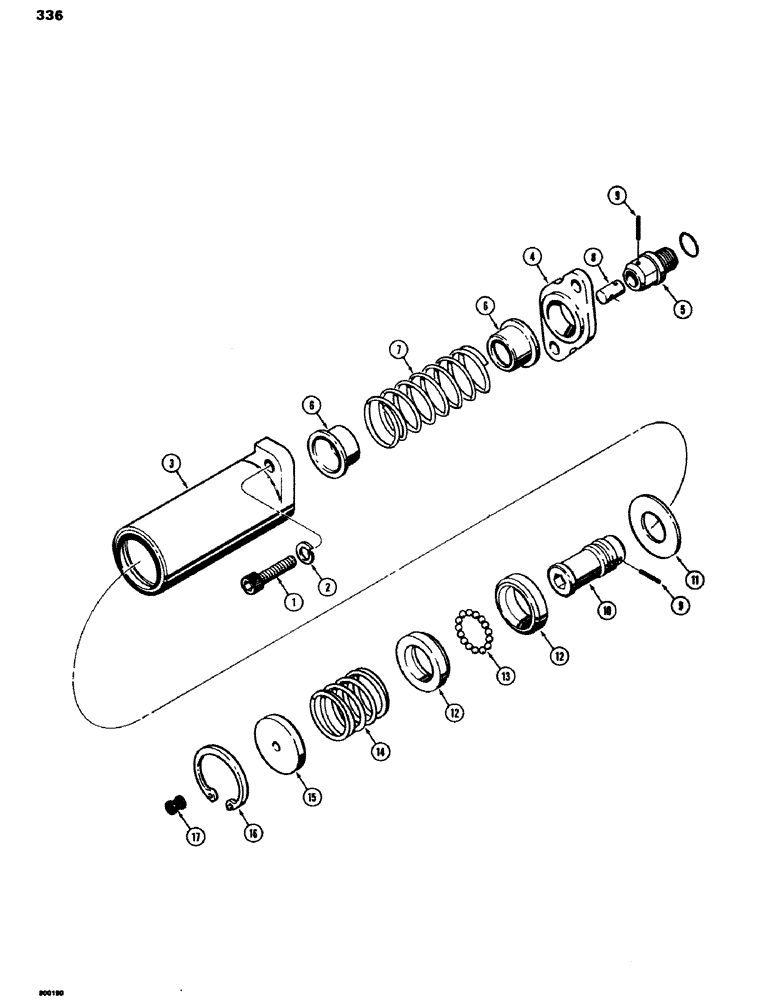

Запчасти Case 580C (336) - HYDRECO LOADER CONTROL VALVE, LIFT SPOOL DETENT (08) - HYDRAULICS

N6580

DETENT

ASSEMBLY - lift spool, Includes: Ref. 1 - 17

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

N6607

CAP

PLUG - spool end, for O-ring number, see spool parts list on Figure 332

1шт.

6

D24777

COLLAR

RETAINER - spring

2шт.

7

N6610

VALVE SPRING

SPRING - spool centering

1шт.

8

N6609

PIN

LINK - spool detent

1шт.

9

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

2шт.

10

N6606

CAP

BARREL - detent

1шт.

11

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143

1шт.

Illustration is wrong this is a snap ring

1шт.

12

N6605

RETAINER

- ball

2шт.

13

211-109

BALL

- detent

15шт.

14

N6669

VALVE SPRING

SPRING - detent - replaces a spring and spacer in some valves

1шт.

15

N6608

PLUG

- detent housing

1шт.

16

H746388

SNAP RING,1.438", Int, #143

Ring, Snap, , detent plug 1.438", Int, #143

1шт.

17

L31734

PLUG

- vent

1шт.
