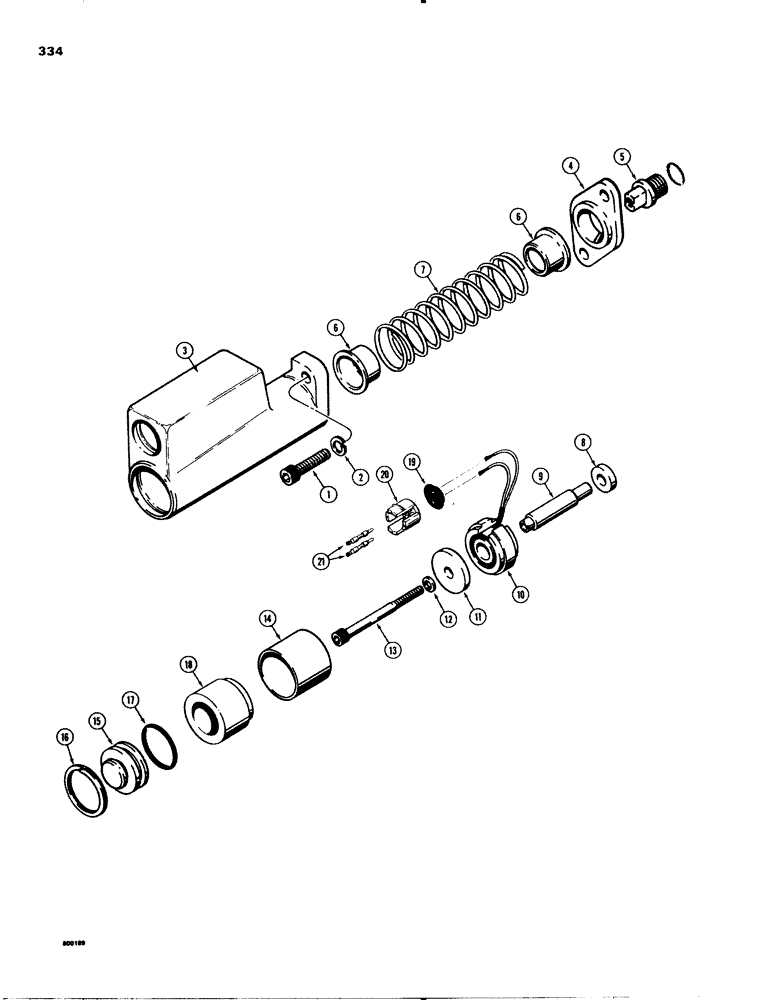

Запчасти Case 580C (334) - HYDRECO LOADER CONTROL VALVE, BUCKET SPOOL DETENT (08) - HYDRAULICS

N6581

DETENT

ASSEMBLY - bucket spool, Includes: Ref. 1 - 21

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

- spool end, for o-ring number see spool parts list on Figure 332

1шт.

6

D24777

COLLAR

RETAINER - spring

2шт.

7

D24776

VALVE SPRING

SPRING - spool centering

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D80688

SOLENOID

COIL - magnetic detent

1шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80686

SPACER

- small

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4" - 20 NC x 3"

1шт.

14

D82711

SPACER

- sleeve

1шт.

15

D80683

PLUG

- end

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - retaining

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- detent assembly

1шт.

18

N6601

SPACER

- o-ring retainer

1шт.

19

N6604

SEAL

- electrical connector

1шт.

20

N6602

RETAINER

SHELL - electrical connector

1шт.

21

N6603

PIN

TERMINAL - electrical connector

2шт.
