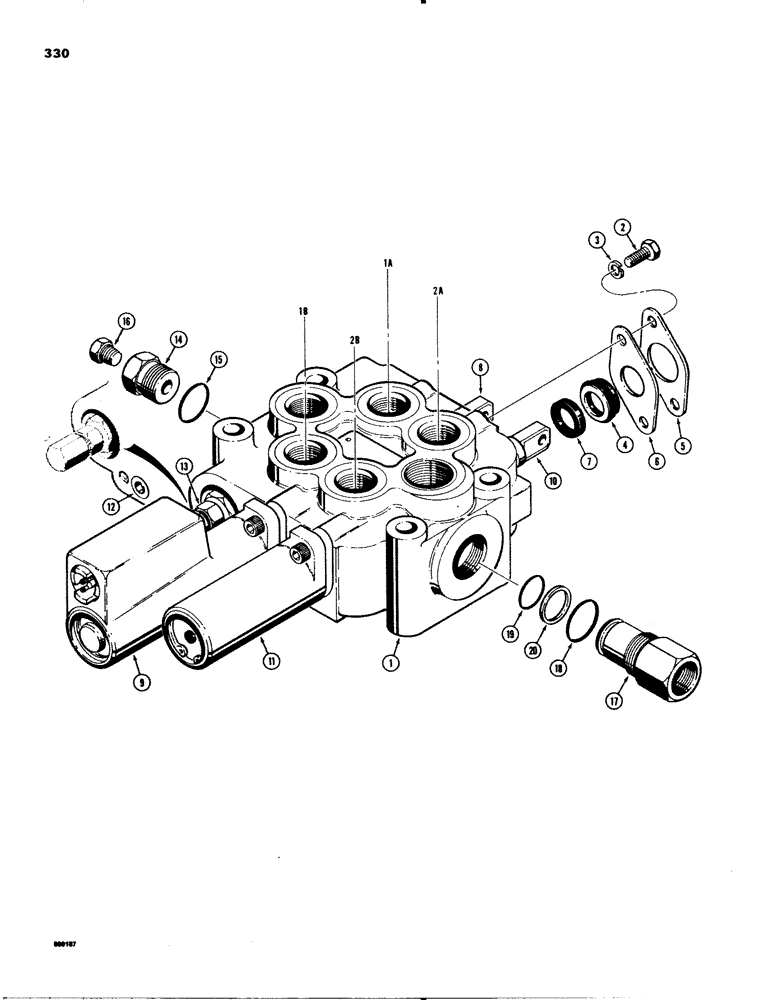

Запчасти Case 580C (330) - HYDRECO LOADER CONTROL VALVE - 2 SPOOL, WITH SOLENOID CONNECTOR PLUG (08) - HYDRAULICS

D82532

VALVE

- loader control, 2 spool, Hydreco MVT025DY30, used on models without PTO, Includes: Ref. 1 - 20

1шт.

For identification, look for the valve part number on name plate. See other 2 spool vavle options on Figures 306 and 308.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

5

D82721

PLATE

- retaining, outer

2шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner

2шт.

7

D82727

SEAL

- spool

4шт.

8

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list Figure 332

1шт.

9

N6580

DETENT

ASSEMBLY - bucket, parts list Figure 334

1шт.

N6580 detent assy. - Parts list is on Figure 336 (not 335).

1шт.

10

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 333

1шт.

11

N6581

DETENT

ASSEMBLY - lift, parts list Figure 336

1шт.

N6581 detent assy. - Parts list is on Figure 334 (not 337).

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - secondary relief, parts list Figure 338

2шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - main relief, parts list Figure 338

1шт.

14

D36928

ADAPTER

FITTING - valve port

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

16

L31759

PLUG - hex, check port

1шт.

17

N6583

FITTING

- special sleeve

1шт.

18

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- outer

1шт.

19

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- inner

1шт.

20

L32991

RING

- backup, inner o-ring

1шт.
