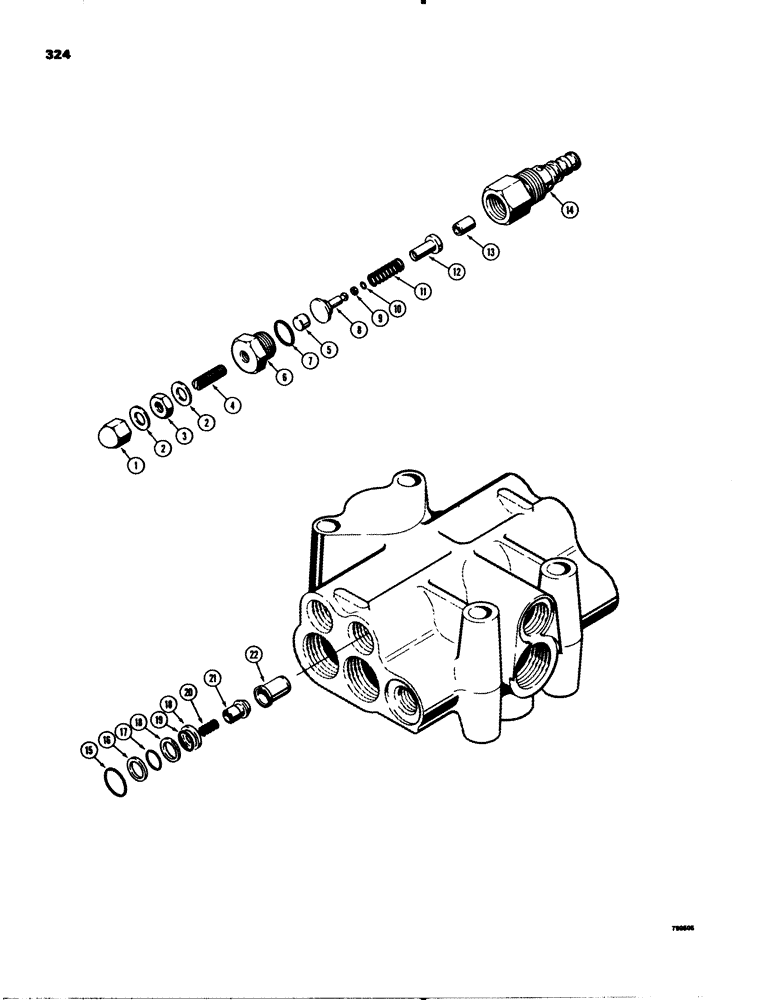

Запчасти Case 580C (324) - PARKER LOADER CONTROL VALVE, SECONDARY RELIEF VALVE & LOAD CHECK VALVE, SCREW ADJUSTABLE (08) - HYDRAULICS

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF

1шт.

4

176-297

SET SCREW,5/16"-24 x 1", Slotted

SCREW - adjusting, secondary relief valve, 5/16" - 24 NF x 1"

1шт.

5

N6042

PLUG

- stop

1шт.

6

D66437

CAP

- secondary relief valve, Includes: Ref. 7

1шт.

8

D37073

GUIDE

- spring

1шт.

9

D40357

RING

- backup

1шт.

10

D40356

O-RING

- spring guide

1шт.

11

D37148

SPRING

- plunger

1шт.

12

D37074

PLUNGER

- secondary relief valve

1шт.

13

D37075

SEAT

- plunger

1шт.

14

D37072

CAP

BODY - secondary relief valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

16

D37071

RING

- backup, center O-ring

1шт.

17

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

18

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small O-ring

2шт.

19

D26872

O-RING

- small

1шт.

20

D37067

SPRING

- poppet

1шт.

21

D37068

VALVE POPPET

POPPET - check valve

1шт.

22

D40358

SEAT

- check valve

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- cap

1шт.
