(320) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL

Запчасти Case 580C (320) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (08) - HYDRAULICS

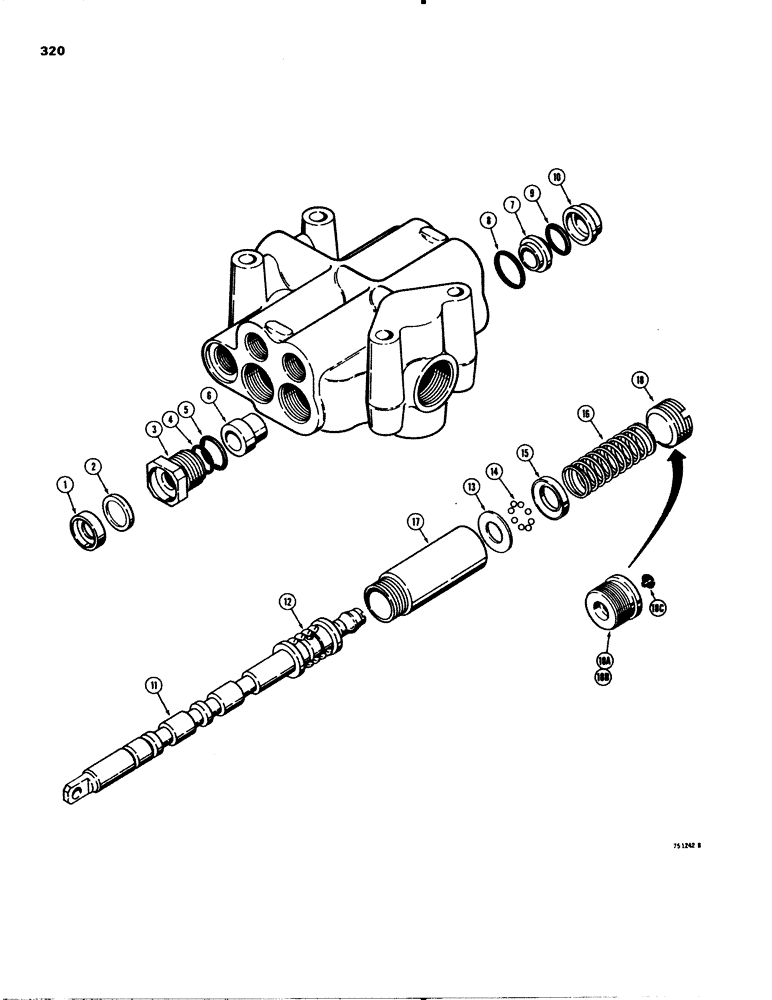

Схема запчастей Case 580C - (320) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (08) - HYDRAULICS
1
8
4
14
2
15
12
5
9
18b
18c
18
16
3
17
6
18a
7
10
11
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D46024

SPOOL

ASSEMBLY - loader lift, D84115 thru D84118 loader control valves, interchangeable with N6746 or N6592, Includes: Ref. 1 - 18C

1шт.

N6746

SPOOL ASSEMBLY - loader lift, D84115 thru D84118 loader control valves, interchangeable with D46024 or N6592, Includes: Ref. 1 - 18C

1шт.

N6592

VALVE

SPOOL ASSEMBLY - loader lift, D91872 thru D91875 loader control valves, interchangeable with D46024 or N6746, Includes: Ref. 1 - 18C

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- gland, small

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- gland, large

1шт.

6

D37076

SLEEVE

- spool, lug end

1шт.

7

D33857

RETAINER

- O-ring, inner

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- housing, large

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- gland, small

1шт.

10

D33856

RETAINER

- O-ring, outer

1шт.

D46034

TUBE

SPOOL KIT - D46024 or N6746 spool assemblies only, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - four position

1шт.

12

A16882

SPRING

- centering, D46024 or N6746 spool assemblies, 2.14" (54 mm) free length

1шт.

12

N6013

SPRING

- centering, N6592 spool assembly, 2.28" (58 mm) free length

1шт.

12a

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, spool eye, internal, not shown

1шт.

13

L30455

WASHER

- detent

1шт.

14

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

15

L30456

CAM

- detent, D46024 or N6746 spool assemblies, has beveled ball race

1шт.

15

N6015

CAM

- detent, D6592 spool assembly, has grooved ball race

1шт.

16

L30626

SPRING

- detent

1шт.

17

L30454

CAP

HOUSING - detent

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - detent adjustment, order 18A or 18B and 18C

1шт.

18a

N6016

PLUG

- detent adjustment, does not have center hole for check plug, if used

1шт.

18b

N6643

PLUG

- detent adjustment, has center hole for check plug, if used

1шт.

18c

N6644

PLUG

- check, N6643 plug, if used

1шт.
