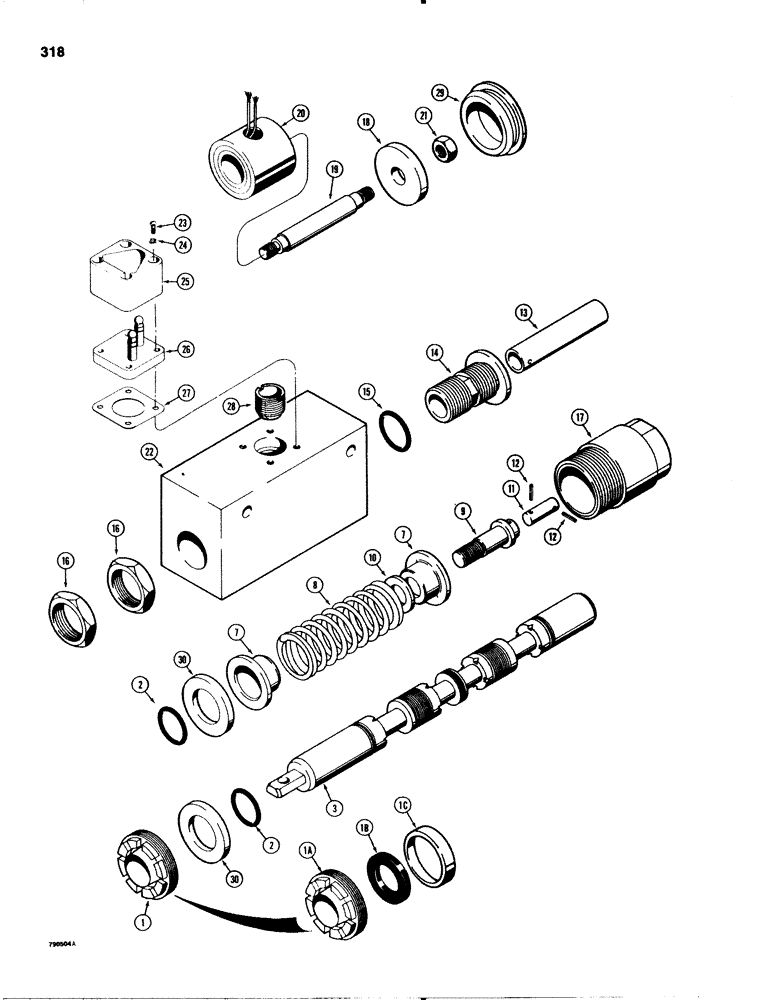

Запчасти Case 580C (318) - PARKER LOADER CONTROL VALVE, LOADER BUCKET SPOOL W/SOLENOID CONNECTOR PLUG (08) - HYDRAULICS

N6591

SPOOL

ASSEMBLY - loader bucket, with solenoid plug, Includes: Ref. 1 - 30

1шт.

For bucket spool with solenoid wires see Figure 316.

1шт.

1

D80412

GLAND

AND WIPER ASSEMBLY - spool, Includes: Ref. 1A - 1C

1шт.

1a

NSS

NOT SOLD SEPARAT

GLAND - spool

1шт.

1b

A14527

SCRAPER

WIPER - spool

1шт.

1c

NSS

NOT SOLD SEPARAT

SLEEVE - gland

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool

2шт.

3

L36051

SPOOL

- bucket control

1шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

8

A25285

SPRING

- spool, centering

1шт.

9

L36048

PLUG

- spool end

1шт.

10

A25268

WASHER - spacer

1шт.

11

D33858

LINK

- spool detent

1шт.

12

138-2012

PIN,1/8" x 1/2", Coiled

2шт.

13

L36049

SPACER

- detent link

1шт.

14

L36046

CONNECTOR, ELEC

CONNECTOR - spool end and detent

1шт.

15

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- connector

1шт.

16

L36045

NUT

- lock, 7/8" - 14 NF

2шт.

17

L36047

CAP

- spool

1шт.

18

N6008

WASHER

- magnetic detent

1шт.

19

L36050

BUSHING

SPACER - coil, rod

1шт.

20

D78419

COIL

AND SLEEVE - one piece design

1шт.

21

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

22

L36040

CAP

HOUSING - magnetic detent

1шт.

23

187-1351

SELF-TAP SCREW,Cross Pan Hd, #4 x 1"

SCREW - self-tapping, no. 4 - 40 NC x 1", plated

4шт.

24

192-53

LOCK WASHER,#4

WASHER, LOCK, #4

4шт.

25

N6046

COVER

- connector

1шт.

26

N6045

CONNECTOR, ELEC

CONNECTOR - two male bullets

1шт.

27

D80410

GASKET

- connector

1шт.

28

L36042

TUBE

LOCK - coil

1шт.

29

L36039

CAP

- magnetic detent spool

1шт.

30

A14535

RETAINER

- spool seal

2шт.
