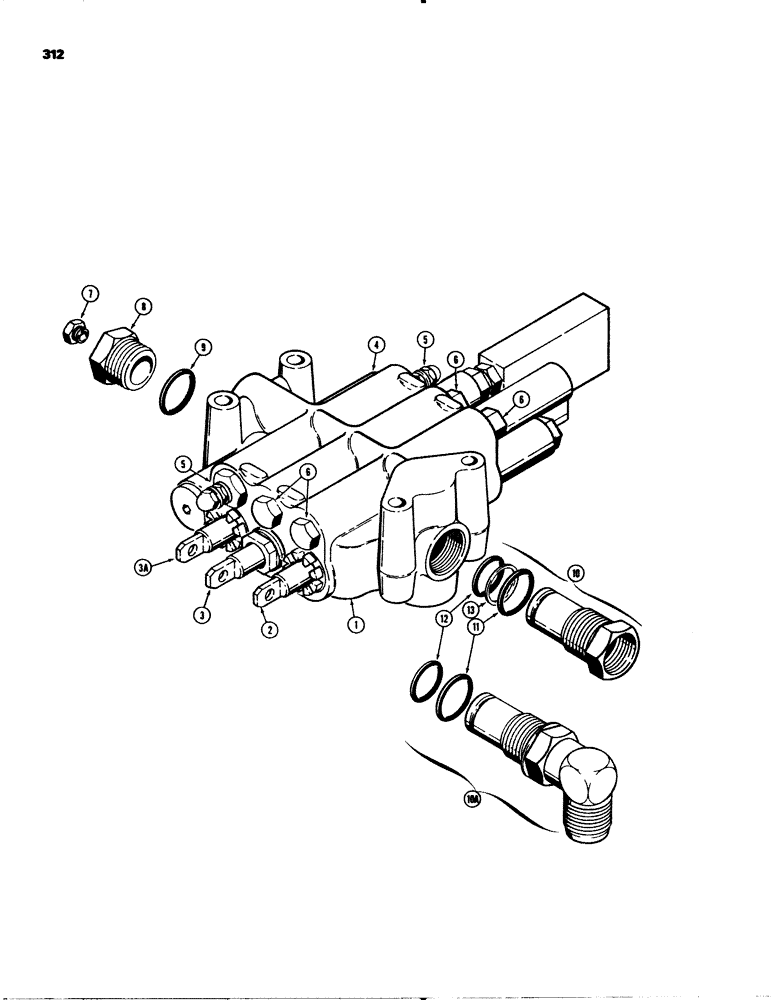

Запчасти Case 580C (312) - PARKER LOADER CONTROL - 3 SPOOL, WITH SOLENOID CONNECTOR PLUG, PWR BEYOND SLEEVE (08) - HYDRAULICS

1

D84117

VALVE

- loader control, 3 spool, Parker series VDSP-22, used on models without PTO, does not include power beyond sleeve, order D91874, Includes: Ref. 2 - 9

1шт.

For identification, look for the valve part number on name plate. See other 3 spool valve options on Figure 310.

1шт.

1

D91874

VALVE

- loader control, 3 spool, Parder series VDSP-22, used on models without PTO, includes power beyond sleeve, see below, Includes: Ref. 2 - 9

1шт.

For identification, look for the valve part number on name plate. See other 3 spool valve options on Figure 310.

1шт.

1

D84118

VALVE, CHECK

VALVE - loader control, 3 spool, Parker series VDSP-22, used on models with PTO, does not include power beyond sleeve, order D91875, Includes: Ref. 2 - 9

1шт.

For identification, look for the valve part number on name plate. See other 3 spool valve options on Figure 310.

1шт.

1

D91875

VALVE, CHECK

VALVE - loader control, 3 spool, Parker series VDSP-22, used on models with PTO, includes power beyond sleeve, see below, Includes: Ref. 2 - 9

1шт.

For identification, look for the valve part number on name plate. See other 3 spool valve options on Figure 310.

1шт.

2

D37050

SPOOL

- loader clam, parts list Figure 314

1шт.

3

REF

INSTRUCTION

SPOOL - loader lift, parts list Figure 320

1шт.

3a

N6591

SPOOL

- loader bucket, parts list Figure 346

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, used in D84117 and D91874 valves only, parts list Figure 326

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - two stage main relief, used in D84118 and D91875 valves only, parts list Figure 327

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 324

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 328

4шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex headk, 1/4" NPT

1шт.

8

D38825

ADAPTER

PLUG - valve port, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

10

D89496

FITTING

SLEEVE - power beyond, straight, if used

1шт.

10a

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond, 90 degree, if used, order D89496 sleeve and 218-5124 elbow, Includes: Ref. 11 - 13

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

12

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- small, used on fittings without backup ring

1шт.

12

A25590

O-RING,15" ID x 1 1" OD x 3/32"

- small, used on fittings with backup ring

1шт.

13

L31332

BACK-UP RING

- backup, A25590 o-ring, if used

1шт.
