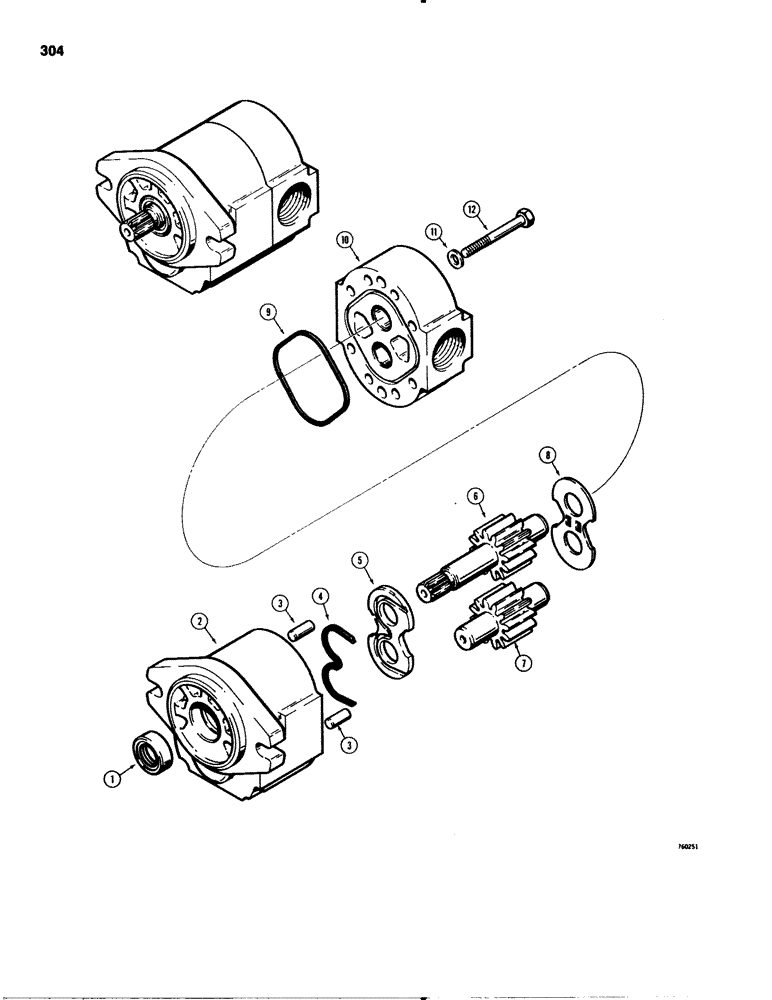

Запчасти Case 580C (304) - D72300 AND D72196 HYDRAULIC PUMPS (08) - HYDRAULICS

D72300

PUMP, HYDRAULIC

PUMP - hydraulic, Warner Motive S30S-27E-J5-2-L, increased noise control, Includes: Ref. 1 - 11

1шт.

For pump identification see name plate on pump. Check make and model number of pump before ordering parts. See other pump options on Figures 300 and 302. D72300 pump is interchangeable with and can replace any of the pumps on Figures 300 and 302. D72196 pump must be used on all PTO models.

1шт.

D72196

PUMP - hydraulic, Warner Motive S30S-29E-J5-2-L, required on PTO models, Includes: Ref. 1 - 11

1шт.

For pump identification see name plate on pump. Check make and model number of pump before ordering parts. See other pump options on Figures 300 and 302. D72300 pump is interchangeable with and can replace any of the pumps on Figures 300 and 302. D72196 pump must be used on all PTO models.

1шт.

D72196 no longer available. D72300 can be used in both applications, pump flow is 1.4 gpm less

1шт.

1

D73624

SEAL

- shaft

1шт.

2

D74418

BODY ASSEMBLY - shaft end, D72300 pump only

1шт.

2

D73616

BODY ASSEMBLY - shaft end, D72196 pump only

1шт.

3

D73621

PIN

- dowel

2шт.

4

D73620

SEAL

- load

1шт.

5

D73619

PLATE

- wear

1шт.

6

D74419

GEAR - drive, D72300 pump only

1шт.

6

D73617

GEAR

- drive, D72196 pump only

1шт.

7

D74420

GEAR - driven, D72300 pump only

1шт.

7

D73618

GEAR - driven, D72196 pump only

1шт.

8

D73623

PLATE

- thrust

1шт.

9

D73622

SPECIAL RING

SEAL - square section

1шт.

10

D73615

COVER

ASSEMBLY - port end

1шт.

11

D74441

WASHER

- special

8шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

8шт.
