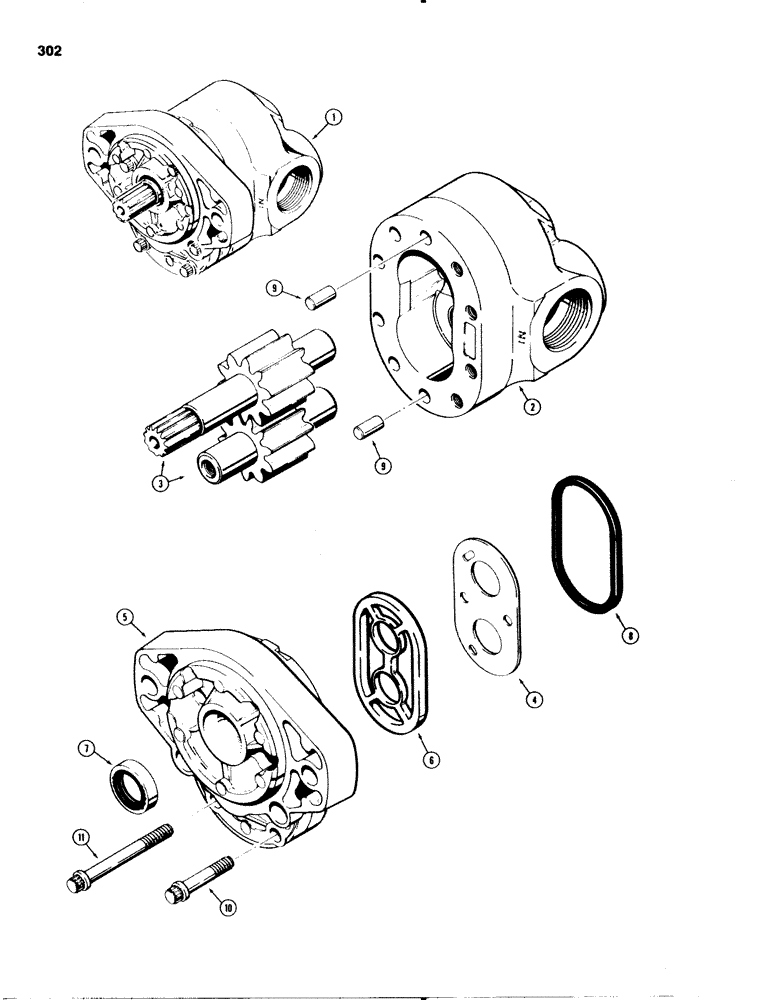

Запчасти Case 580C (302) - TRW HYDRAULIC PUMP (08) - HYDRAULICS

1

D49241

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic complete, TRW no. 19-920178-00 or GP92033, for service order D53690, Includes: Ref. 2 - 11

1шт.

D53690 Service Replacement Pump can be either a Cessna or TRW pump as shown on Figure 302. For pump identification see name plate on pump. Check make and model number of pump before ordering parts. See other interchangeable pump options on Figure 304. For applications where increased noise control is desired, D72300 pump shown on Figure 304 can be used. For PTO models D72196 pump shown on Figure 304 must be used.

1шт.

Pump goes into coupling, Ref. 11 on Figure 244, which bolts to fan drive pulley, Ref. 11 on Figure 038

1шт.

1

D80083

PUMP

ASSEMBLY - hydraulic, complete, TRW no. GP92034, Includes: Ref. 2 - 11

1шт.

D53690 Service Replacement Pump can be either a Cessna or TRW pump as shown on Figure 302. For pump identification see name plate on pump. Check make and model number of pump before ordering parts. See other interchangeable pump options on Figure 304. For applications where increased noise control is desired, D72300 pump shown on Figure 304 can be used. For PTO models D72196 pump shown on Figure 304 must be used.

1шт.

D53690R

REMAN-HYD PUMP

580C, Reman for New P/N D80083

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gear, for service order D53690

1шт.

3

D50103

GEAR

SET - drive and driven

1шт.

N6297

COVER

KIT - cover and seal, Includes: Ref. 4 - 9

1шт.

4

D50104

PLATE

- pressure

1шт.

Part of P/N N6296 Seal Repair Kit

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - drive shaft end

1шт.

6

1994595C1

SEAL

- cover to pressure plate, can be a one piece or three piece seal

1шт.

Part of P/N N6296 Seal Repair Kit

1шт.

7

D52477

SEAL

- shaft

1шт.

Part of P/N N6296 Seal Repair Kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - D-section, cover to body, replaces o-ring on some pumps

1шт.

Part of P/N N6296 Seal Repair Kit

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL - cover

2шт.

10

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

- ferry head, 3/8" - 16 NC x 1-3/4"

3шт.

11

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry head, 3/8" - 16 NC x 3-1/4"

5шт.

N6296

SEAL KIT

KIT seal repair, Includes: Refs. 4, 6, 7 and 8

1шт.
