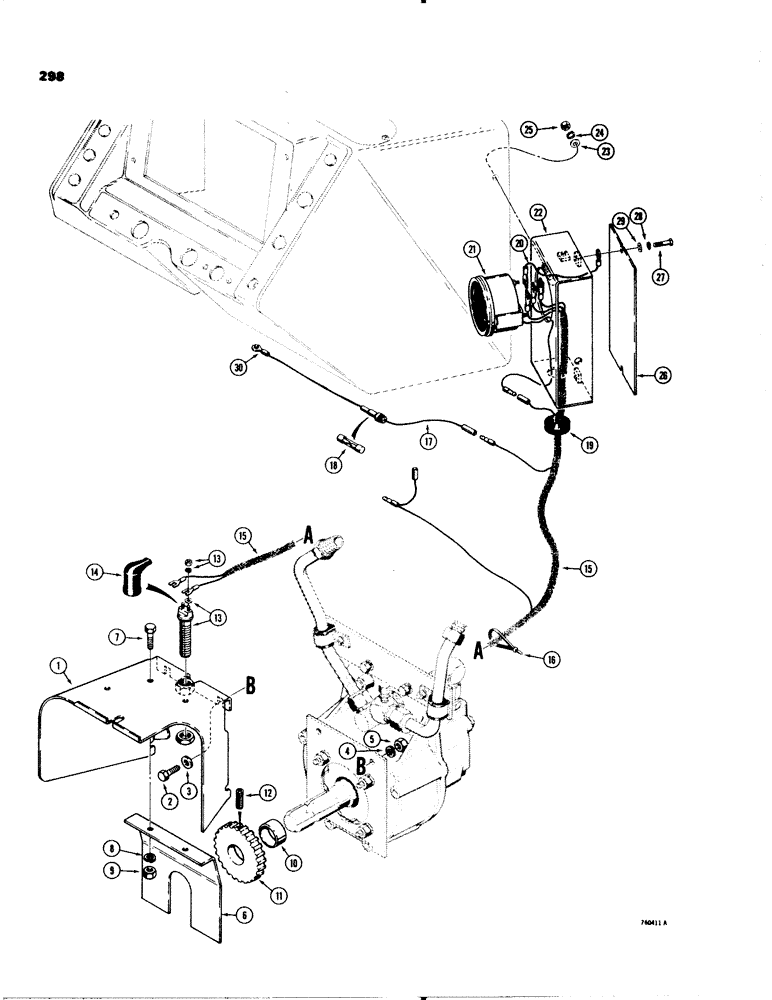

Запчасти Case 580C (298) - PTO SHIELD AND SPEED INDICATOR (08) - HYDRAULICS

1

D75219

GUARD

SHIELD - PTO shaft

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

2шт.

6

D74799

SHIELD

- sensor

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

10

D74632

SPACER

- disc

1шт.

11

D74741

DISC

- pickup

1шт.

12

83-414

SET SCREW,Hex Soc, 1/4"-20 x 7/8"

SCREW - set, 1/4" - 20 NC x 7/8"

1шт.

13

D75217

SENSOR

- speed indicator, includes hardware

1шт.

14

R29627

BOOT

GUARD - rubber

1шт.

15

D74873

HARNESS

- wire

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

3шт.

17

D74876

SPARE PART

WIRE - fuse holder, Includes: Ref. 18

1шт.

18

223-10

FUSE,10 Amp, Type 3AG

- 10 amp (3 AG 10)

1шт.

19

49567

GROMMET

- harness

1шт.

20

D74877

ELECTRICAL WIRE

WIRE - ground

1шт.

21

D74872

SPARE PART

GAUGE - PTO speed indicator

1шт.

22

D74814

BRACKET

- gauge

1шт.

23

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

26

D74801

COVER

- bracket

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

30

223-51

TERMINAL CONNECTOR,12 - 19

TERMINAL - no. 10, if used

1шт.

30

223-55

TERMINAL CONNECTOR,10 - 12

TERMINAL - 5/16", if used

1шт.
