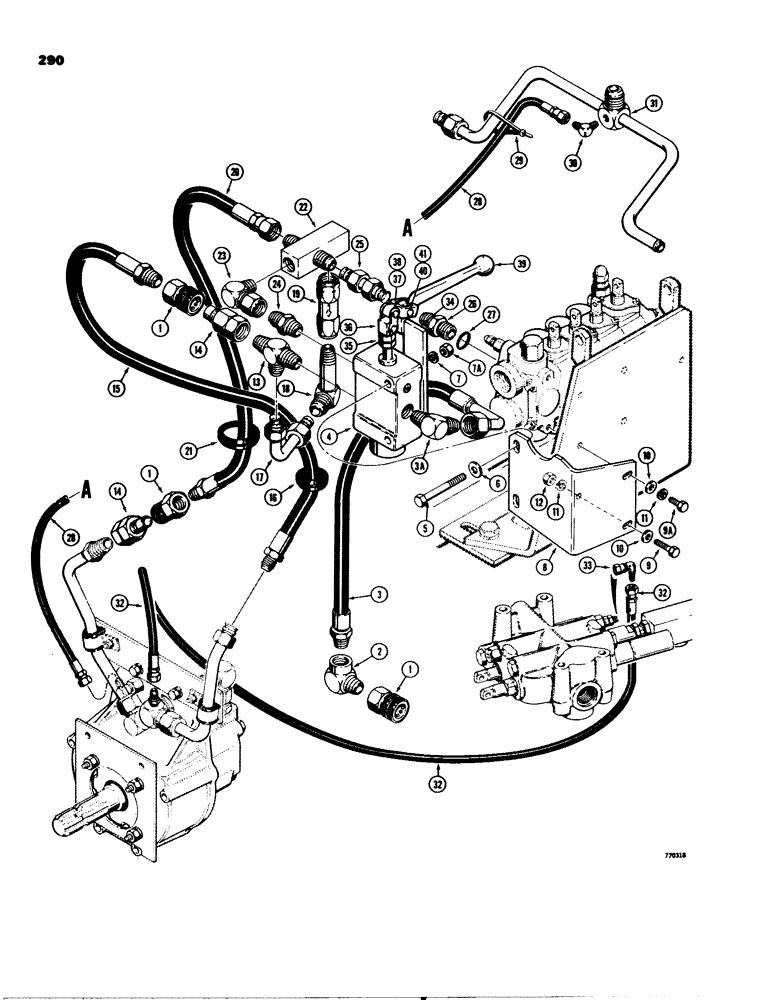

Запчасти Case 580C (290) - PTO HYDRAULIC CIRCUIT AND CONTROL (08) - HYDRAULICS

1

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 370

3шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

3

D73580

HOSE

- to selector valve, special

1шт.

3a

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 degree, male, at selector valve

1шт.

4

D65378

VALVE

- selector, parts list page 365

1шт.

5

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

7

192-8

WASHER - lock, 1/2"

2шт.

7a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

8

D72655

BRACKET - valve

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

9a

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

D72656

TEE

FITTING - tee, male

1шт.

14

D52694

QUICK MALE COUPLING

COUPLING - disconnect, male, parts list Figure 370

2шт.

15

D73579

HOSE

- pressure, to PTO, 30" (762 mm) long

1шт.

16

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- floor plate, if used, 1-3/4" (44 mm)

1шт.

17

D72629

TUBE,0.75" OD x 3.2, 4.3" L

- check valve

1шт.

18

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 degree, check valve

1шт.

19

D71716

VALVE

- check

1шт.

20

35188

D PANEL

- PTO return, 25" (635 mm) long

1шт.

21

D50976

GROMMET - floor plate, 2-1/2" (64 mm)

1шт.

22

D72423

MANIFOLD

BLOCK - manifold

1шт.

23

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

FITTING - 90 degree, adjustable

1шт.

24

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - male adapter

1шт.

25

D72631

TUBE - to 3-point hitch valve

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male connector, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

28

D72020

HOSE

- PTO case drain

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

2шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degree, male

1шт.

31

D71941

TUBE

- to oil reservoir

1шт.

32

D74342

HOSE

- PTO motor to loader valve, 70" (1778 mm) long, if used

1шт.

33

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

FITTING - 90 degree, D74342 hose to loader valve two stage main relief, if used

1шт.

34

D74934

BRACKET - selector valve

1шт.

35

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

1шт.

36

D74931

LINK

- spool end

1шт.

37

36640

DRAG LINK

LINK ASSEMBLY - connecting

1шт.

38

132-13

PIN

- cotter, 1/16" x 1-1/2"

1шт.

39

D23722

HANDLE

LEVER - selector valve control

1шт.

40

36627

SEAT

PIN - clevis

1шт.

41

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
