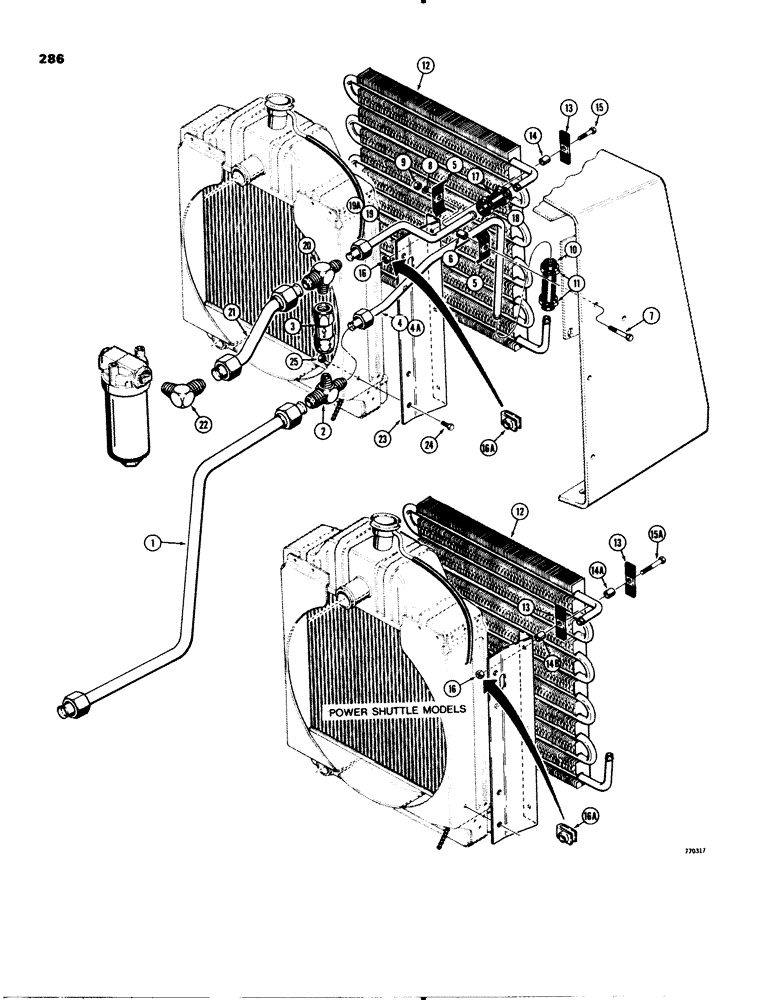

Запчасти Case 580C (286) - PTO HYDRAULIC COOLING SYSTEM, BEFORE TRACTOR S/N 8961374 (08) - HYDRAULICS

1

D71805

TUBE - return, from rear equipment hydraulics

1шт.

2

218-1109

TEE,1 5/16"-12, 37 Degree x 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

FITTING - tee, male

1шт.

3

D68804

VALVE - check

1шт.

4

D72066

TUBE - to cooler bottom port, mechanical shuttle models

1шт.

4a

D72040

TUBE - to cooler bottom port, power shuttle models

1шт.

5

D40236

CLAMP

- tube

2шт.

6

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

D24728

HOSE

- cooler tubes, 3/4" (19 mm) ID x 4-1/2" (114 mm) long

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

12

D72041

COOLER

- hydraulic oil

1шт.

13

D54416

CLAMP

PLATE - mounting

4-8шт.

14

D75075

SPACER

- mounting plate, mechanical shuttle models

4шт.

14a

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- mounting, front, power shuttle models

4шт.

14b

D76209

SPACER

- mounting, rear, power shuttle models

4шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2", Mechanical shuttle models

4шт.

15a

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Power shuttle models

4шт.

16

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC, if used

4шт.

16a

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- J-type, 5/16" - 18 NC, if used

4шт.

17

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Cooler Tubes 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

19

D72064

TUBE - from cooler top tube, mechanical shuttle models

1шт.

19a

D72038

TUBE - from cooler top tube, power shuttle models

1шт.

20

218-1109

TEE,1 5/16"-12, 37 Degree x 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

FITTING - tee, male

1шт.

21

D77947

TUBE

, Serial Range: --filter

1шт.

22

D71940

ELBOW

FITTING - at filter, 90 degree special

1шт.

23

D75234

BRACKET

- cooler, mechanical shuttle models, when replacing brackets using loose hex nuts (Ref. 16) or welded on square nuts also order (2) J-type nuts (Ref. 16A)

2шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2шт.
