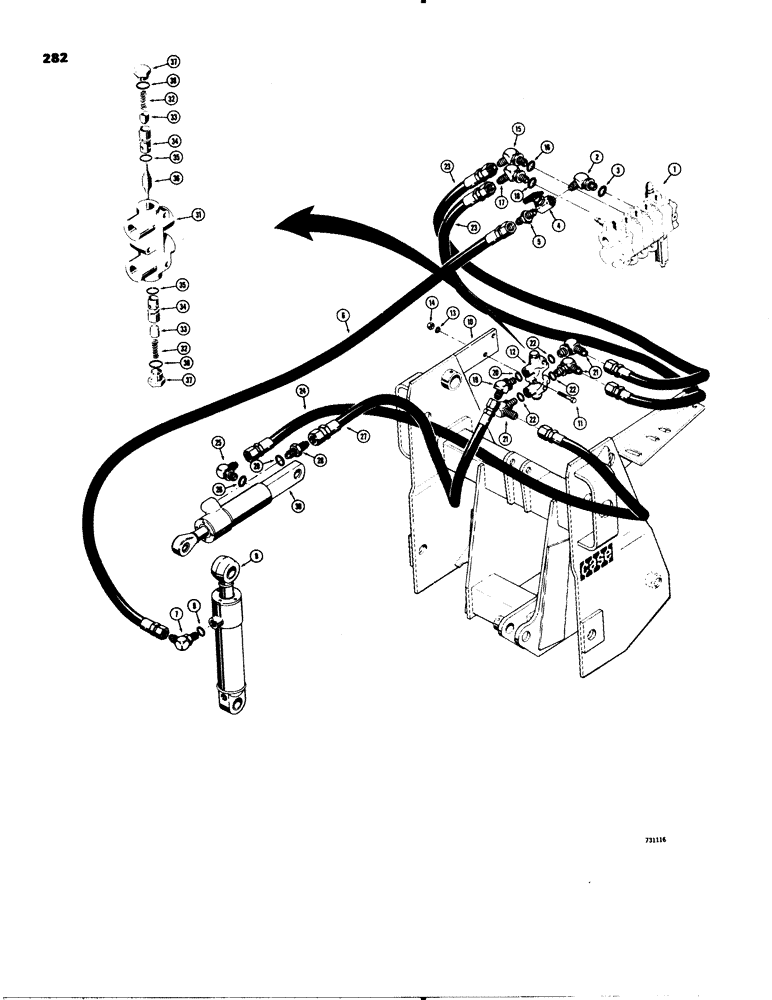

Запчасти Case 580C (282) - 3-POINT HITCH ANTI-LEAKDOWN KIT / D47256 CHECK VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D52970
CONTROL VALVE
VALVE - control, 3 point hitch, parts list Figure 356
1шт.
2
D60015
FITTING
- adjustable, 45 degree, Includes: Ref. 3
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
4
D60016
BALL
VALVE - shut-off
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
5
218-444
HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF
FITTING - straight, male connector
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
6
D51686
HOSE
- shut-off valve to lift cylinder, rod end, 54" (1372 mm) long
1шт.
7
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
FITTING - 90 degree, adjustable, Includes: Ref. 8
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- fitting
1шт.
9
REF
INSTRUCTION
CYLINDER - hydraulic, lift, see Figures 416 and 418
1шт.
10
D59772
PLATE
- valve mounting, welded to hitch frame
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
11
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
Part of anti-leakdown Kit P/N D17196
1шт.
12
D47256
VALVE
- check, pilot operated, parts list below
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
13
92-5
LOCK WASHER,5/16"
2шт.
Part of anti-leakdown Kit P/N D17196
1шт.
14
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
2шт.
Part of anti-leakdown Kit P/N D17196
1шт.
15
D52943
ELBOW
FITTING - 45 degree restrictor, upper port of pitch section, Includes: Ref. 16
1шт.
17
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
FITTING - 45 degree, adjustable, lower port of pitch section, Incl. Ref 18
1шт.
19
D59773
FITTING
- restrictor, 45 degree, at check valve, Includes: Ref. 20
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
21
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
FITTING - adjustable, 90 degree, at check valve, Includes: Ref. 22
3шт.
Part of anti-leakdown Kit P/N D17196
1шт.
23
D59771
HOSE
- top and bottom ports of pitch section of control valve to top and bottom ports of check valve, 27" (686 mm) long
2шт.
Part of anti-leakdown Kit P/N D17196
1шт.
24
T40301
HOSE,0.38" ID x 17.00", SAE 100R1
Rear Bottom Port of Check Valve to Closed End of Pitch Cylinder 0.38" ID x 17.00", SAE 100R1
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
25
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
FITTING - 90 degree, adjustable, Includes: Ref. 26
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- fitting
1шт.
27
D56128
HOSE
- rear top port of check valve to rod end of pitch cylinder, 25" (635 mm) long
1шт.
Part of anti-leakdown Kit P/N D17196
1шт.
28
HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB
Fitting - male, straight, Incl. Ref 29 3/4"-16, 37º x 7/8"-14, O-Ring
1шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- fitting
1шт.
30
REF
INSTRUCTION
CYLINDER - hydraulic, pitch, see Figure 424
1шт.
D17196
KIT
- anti-leakdown, Includes: Ref. 2, 4, 5, 10, 11, 12, 13, 14, 19, 21, 23, 24 and 27
1шт.
D47256
VALVE
- check, Parker VCPDO8B11T, Includes: Ref. 31 - 38
1шт.
31
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
32
D48818
SPRING
- poppet
2шт.
D48819
VALVE POPPET
POPPET AND SLEEVE ASSEMBLY, Includes: Ref. 33 - 35
2шт.
33
NSS
NOT SOLD SEPARAT
POPPET
1шт.
34
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
35
D48820
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
36
D48821
TRANSMISSION
SHUTTLE - valve
1шт.
37
D48822
PLUG
- special
2шт.
3
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- fitting
1шт.
16
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- fitting
1шт.
18
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- fitting
1шт.
20
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- fitting
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- fitting
1шт.
38
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- plug
2шт.
Выбрано товаров: 54
