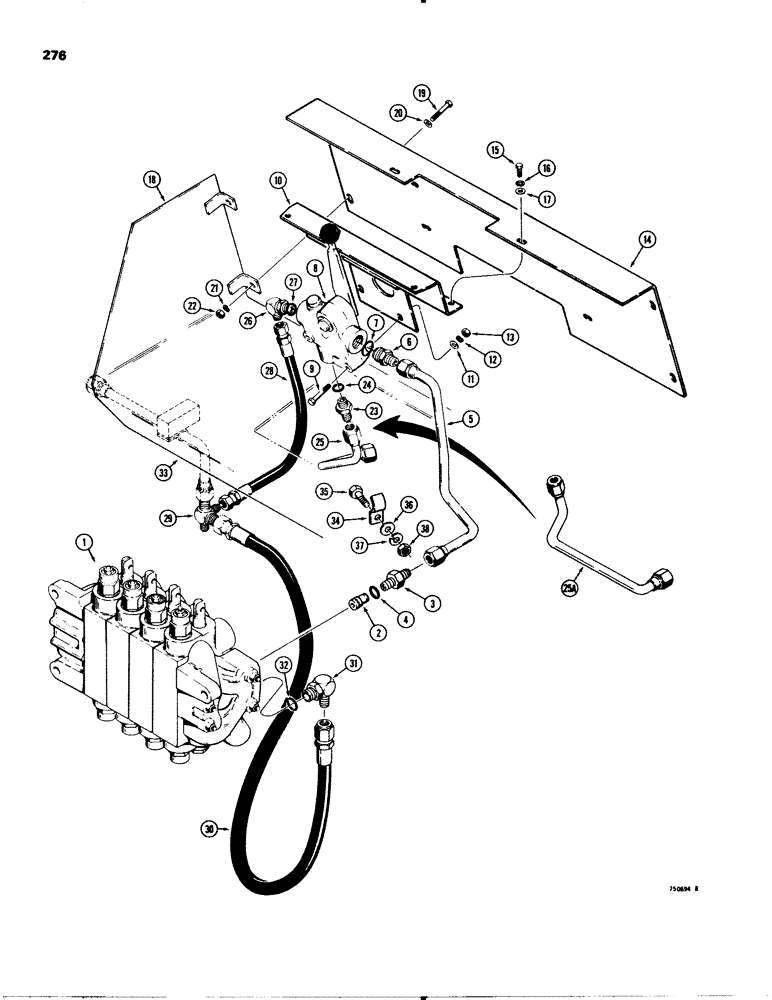

Запчасти Case 580C (276) - BACKHOE BOOM, LOCK HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control, see Figure 342

1шт.

2

D56252

FITTING

RESTRICTOR - check

1шт.

3

L55143

FITTING

FITTING - male, straight adapter, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

5

D69518

TUBE

- from backho valve to boom lock valve

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

8

D56102

VALVE

- boom lock, parts list Figure 352

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3"

2шт.

10

D69516

PANEL - top

1шт.

11

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

D69517

PANEL - front

1шт.

15

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

18

D67788

PLATE - mounting

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

20

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

25

D75080

TUBE

- lock, valve to boom cylinder, used before backhoe, Serial Range: -5356938

1шт.

D75080 tube - Description should read for use "after" SN 5356938. Ref. is also misnumbered on this figure (Ref. showing as 25 is actually 25A and vice versa).

1шт.

25a

D69520

TUBE

- lock, valve to boom cylinder, used on backhoe, Start Serial: 5356938

1шт.

D69520 tube - Description should read for SN 5356938 and "before". Ref. is also misnumbered on this figure (Ref. showing as 25 is actually 25A and vice versa.

1шт.

26

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 27

1шт.

28

D69650

HOSE

- lock valve return, 26" (660 mm) long

1шт.

29

D69651

TEE

CROSS - 4-way

1шт.

30

D67792

HOSE

- backhoe valve return, 32" (813 mm) long models without extendable dipper

1шт.

30

D73346

HOSE

- backhoe valve return, models with extendable dipper, 34" (864 mm) long

1шт.

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

33

D72091

HYD TUBE,1" OD x 4.1, 5.1" L

TUBE - return to hydraulic tank

1шт.

34

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
