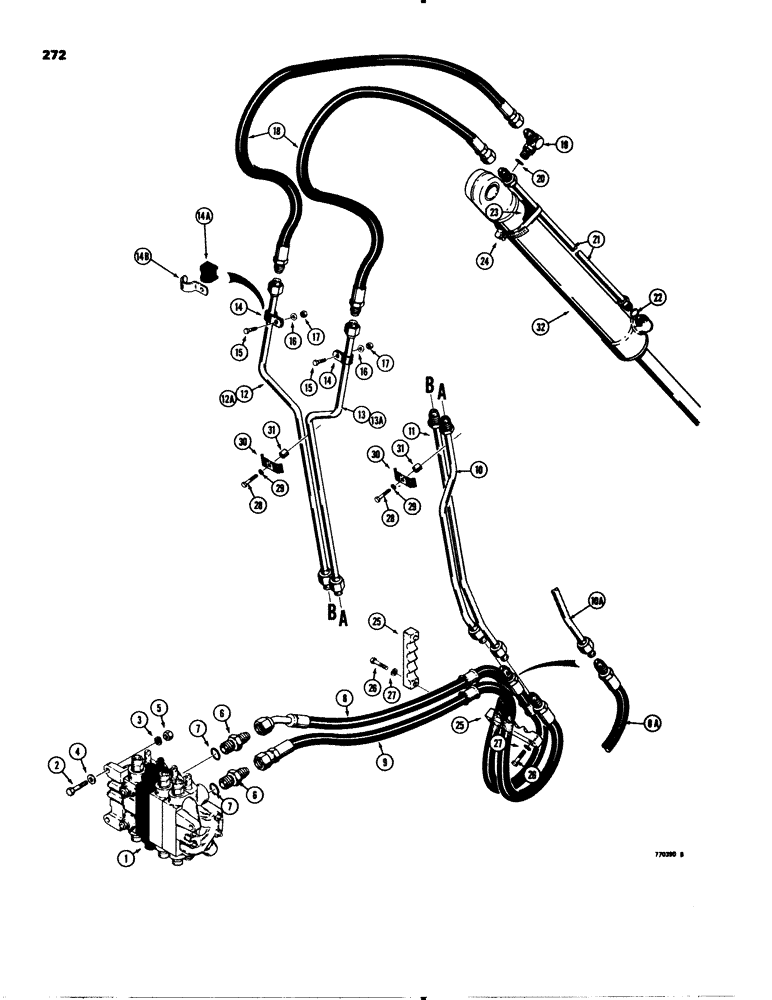

Запчасти Case 580C (272) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS W/EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 342

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male adapter, Incl. Ref. 7

2шт.

8

D74339

HOSE,15.88mm ID x 1371.6mm L, SAE 100R2

- top valve port, 54" (1372 mm) long, used on backhoe, Start Serial: 5355844

1шт.

8a

D70871

HOSE

- top valve port, 50" (1270 mm) long, used before backhoe, Serial Range: -5355844

1шт.

9

D69170

HOSE,15.88mm ID x 1219.2mm L, SAE 100R2

- bottom valve port, 48" (1219 mm) long

1шт.

10

D76418

HYD TUBE,0.75" OD x 3.6, 36" L

TUBE - rod end circuit, RH lower, used on backhoe, Start Serial: 5355844

1шт.

10a

D73298

TUBE,0.75" OD x 4.65, 39.4" L

- rod end circuit, RH lower, used before backhoe, Serial Range: -5355844

1шт.

11

D73300

HYD TUBE,0.75" OD x 3.77, 39.4" L

TUBE - closed end circuit, LH lower

1шт.

12

D73302

PIPE

TUBE - rod end circuit, LH upper, used before backhoe order D77846, Serial Range: -5355844

1шт.

12a

D77846

TUBE

- rod end circuit, LH upper, used on backhoe, Start Serial: 5355844

1шт.

13

D73304

TUBE

- closed end circuit, RH upper, used before backhoe order D77848, Serial Range: -5355844

1шт.

13a

D77848

TUBE

- closed end circuit, RH upper, used on backhoe, Start Serial: 5355844

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- D73302 and D73304 tubes, if used

2шт.

14a

D74192

CLAMP

- tube, if used

2шт.

14b

D74182

GROMMET,3/4" ID x 1.46" L

SPACER - clamp, used with Ref. 14A

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

17

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

2шт.

18

D52566

HOSE

- to bucket cylinder, 70" (1778 mm) long

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

19

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, male adapter, Includes: Ref. 20

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tube end

1шт.

21

D55050

HOSE

TUBE - to rod end of cylinder, Includes: Ref. 22

1шт.

23

D38648

BLOCK

SPACER - tube, rubber

1шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

25

D50388

CLAMP

- hoses

2шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", if used

4шт.

26

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

D40236

CLAMP

- tube

2шт.

31

D76212

BUSHING

SPACER - clamp

2шт.

32

REF

INSTRUCTION

CYLINDER - bucket, parts list Figure 408 or 410

1шт.
